الواح 580واط فولت مونو كفاله 5 سنوات عيوب مصنعيه

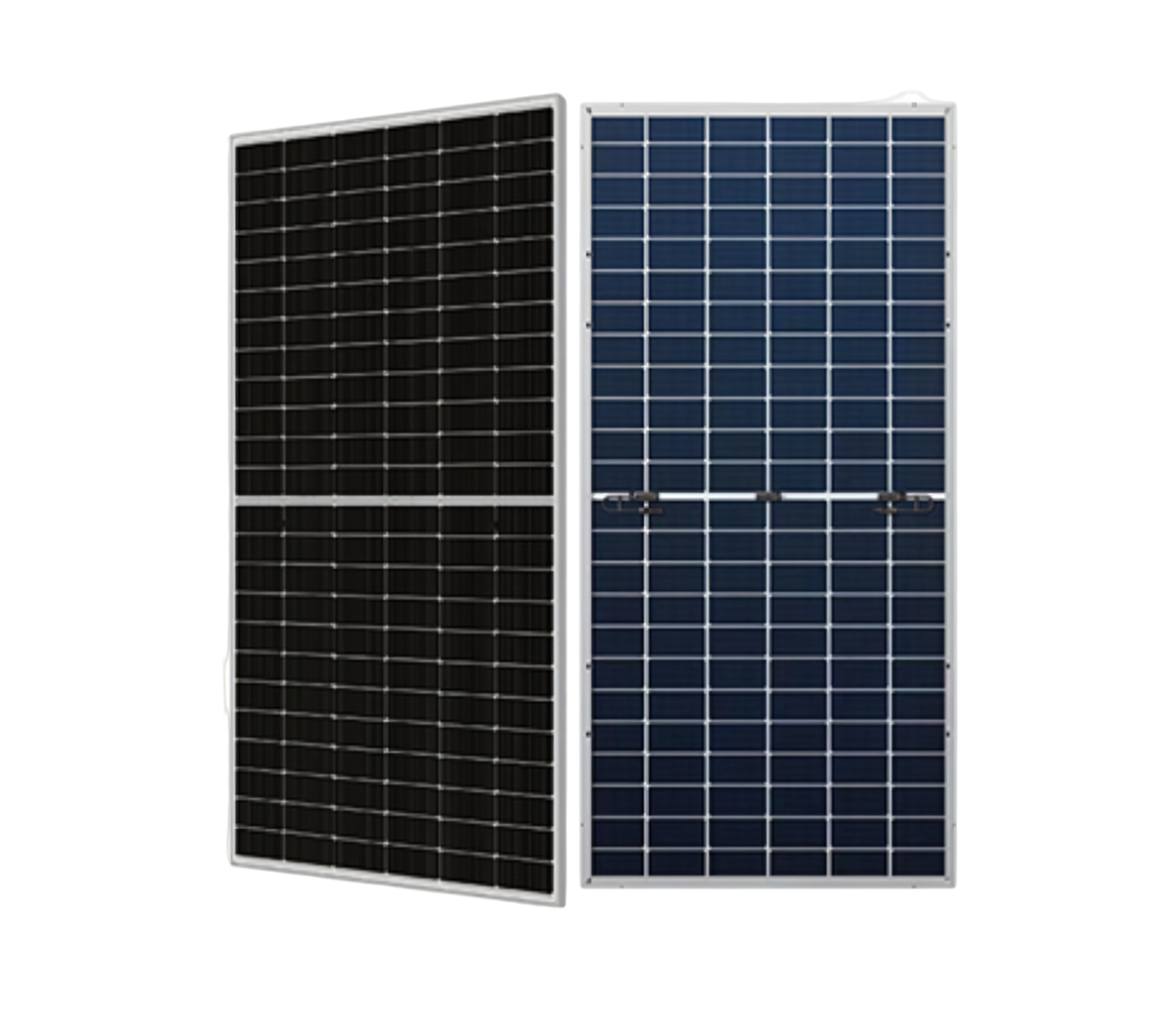

550W Monocrystalline Solar Panel – Half-Cut Technology

☀️ High-Efficiency Solar Panel with Half-Cut Technology

This 550W monocrystalline solar panel uses half-cut cell technology to enhance efficiency and reduce energy loss, especially under partial shading conditions. The double glass construction and aluminum frame provide durability and long-term performance in various environments.

Designed for high-performance solar energy systems, it is suitable for both residential and commercial applications.

⚙️ Technical Specifications

1. Type: Monocrystalline (Half-Cut)
2. Maximum Power (Pmax): 550W
3. Open Circuit Voltage (Voc): 50.8V
4. Short Circuit Current (Isc): 13.27A
5. Voltage at Maximum Power (Vmp): 42.23V
6. Current at Maximum Power (Imp): 13.06A
7. Efficiency: 21.7%
8. Number of Cells: 144
9. Dimensions: 2279 × 1134 × 30 mm
10. Weight: 27.3 kg
11. Cables: 4 mm², 300 mm length
12. Connectors: MC4 compatible
13. Glass: Double glass
14. Frame: Aluminum alloy
15. Junction Box: IP68

🌡️ Thermal Performance

1. Power Temperature Coefficient: -0.290%/°C
2. Voltage Temperature Coefficient: -0.250%/°C
3. Current Temperature Coefficient: +0.045%/°C

🌦️ Environmental Resistance

1. Wind Load: 2400 Pa
2. Snow Load: 5400 Pa
3. Operating Temperature: -40°C to +85°C

✅ Key Features

1. ✔️ High efficiency with half-cut technology
2. ✔️ Double glass for enhanced durability
3. ✔️ Weather-resistant design
4. ✔️ Good performance in low-light conditions
5. ✔️ Suitable for large solar installations
