‏بطارية ليثيوم SMART-ALN-48V-200 (P) (10.24kWh) كفاله سنه

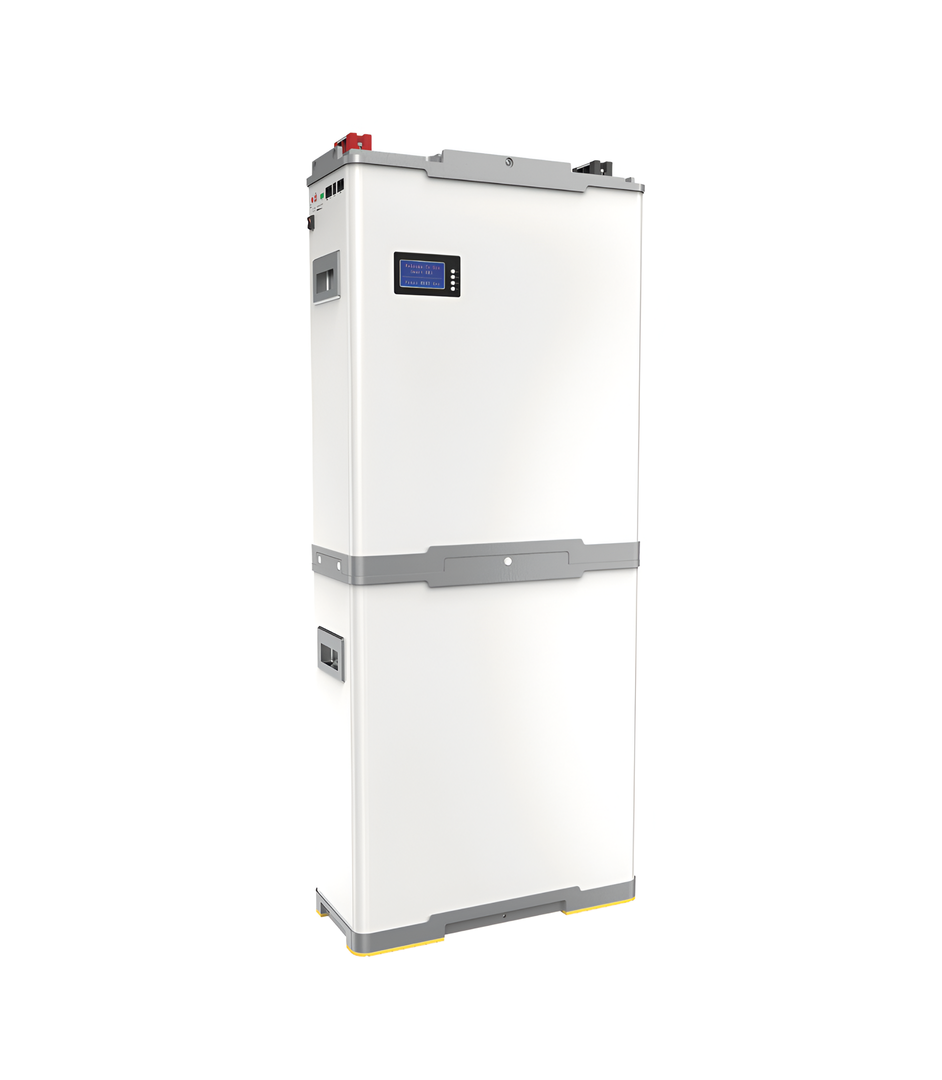

🔋 Smart Lithium Solar Battery – SMART-ALN-V-48-200(P)

Capacity: 10240Wh (10.24kWh)

Cell Type: LiFePO₄ (Lithium Iron Phosphate)

✅ Basic Technical Specifications:

🔹 Nominal Capacity: 200Ah

🔹 Nominal Voltage: 48V (Actual: 51.2V)

🔹 Total Energy: 10.24kWh

🔹 Rated Current: 100A

🔌 Battery Features:

🔹 Communication Interface: RS485 / CAN

🔹 Storage Temperature: -10℃ to 30℃

🔹 Operating Temperature Range: 0℃ to 50℃

🔹 Relative Humidity: 5% – 95% RH

🔹 Atmospheric Pressure: Below 5000m

🔹 Self-Discharge Rate (25℃): <3% per month

🔹 Depth of Discharge (DOD): >80%

🔹 C-rate Discharge: <0.8C

🔹 Cycle Life: >6000 cycles (at <0.5C discharge rate)

📦 Additional Details:

🔹 Dimensions: 668 × 605 × 731 mm

🔹 Parallel Connection: Up to 15 units

🔹 Certifications: UN38.3 / CE / MSDS / DGM

💡 Ideal For:

🔹 Home solar power systems

🔹 Medium-scale commercial use

🔹 Backup for essential loads during outages
