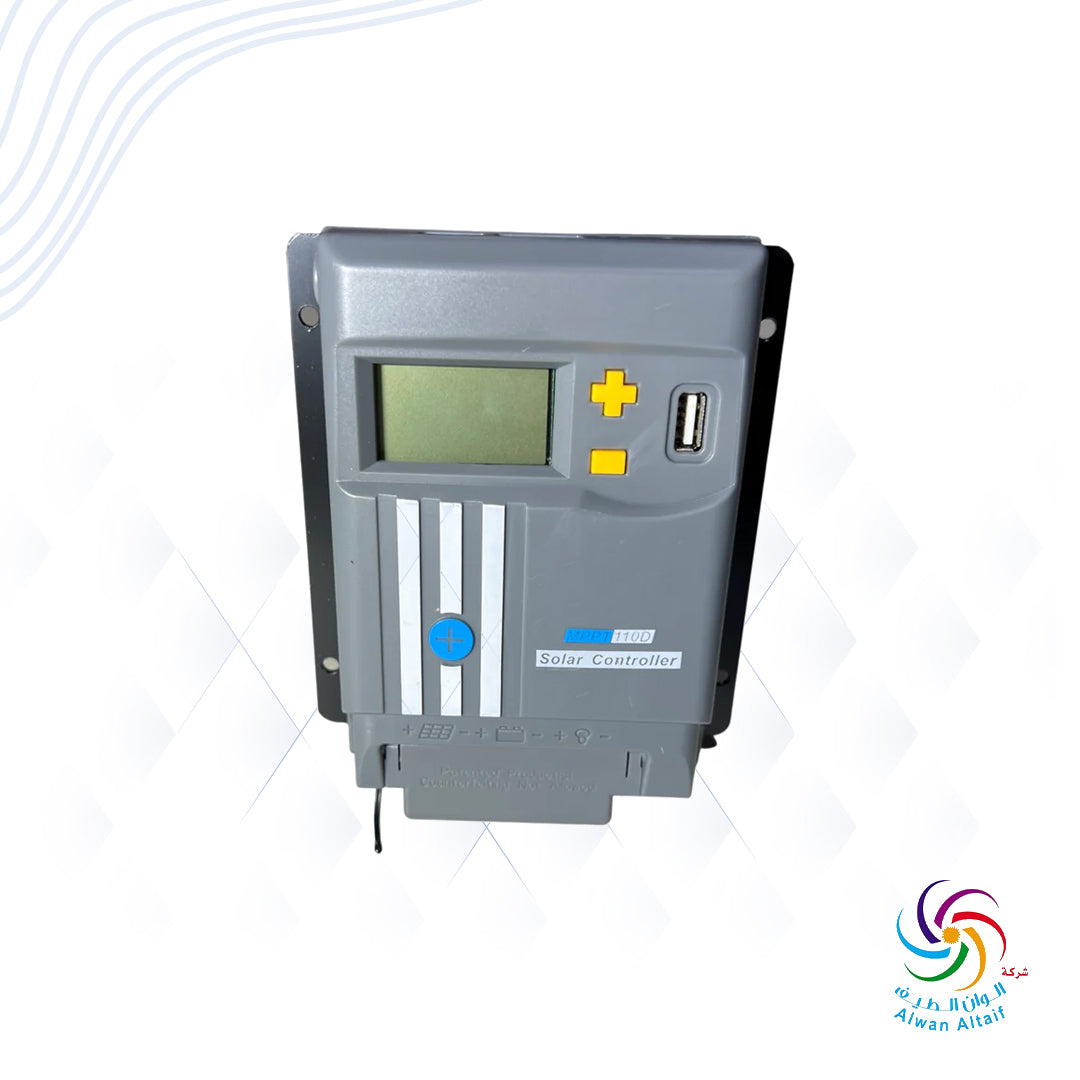

Control 10amp MPPT

Intelligent control. Consistent performance. Elegant design.

Designed to fit small systems with high efficiency, it supports automation on 12V and 24V systems.

Technical features – 10A:

Nominal charging current: 10 amps

Maximum voltage of solar panels: up to 100V (optional up to 150V)

Supported voltage system: 12V/24V – automatic

Maximum power of the panels: 130W (12V) / 260 W (24V)

Supported battery types: Sealed – GEL – Flooded – LiFePO4 – Li(NiCoMn)O2

Fast Charging (Boost): 14.4V/28.8V

Equalised charging (Equalised): 14.6V / 29.2V (for lead batteries)

Operating temperature: from -20℃ to +60℃

Integrated protection: against reflection, overcharge, discharge, overload, and overheating

Dimensions and weight: 135 x 110 x 30 mm – weight 280 g only
