SY-DHF26-15-72-1100 SHIYUAN DC PUMP 15M 2

Solar pump from

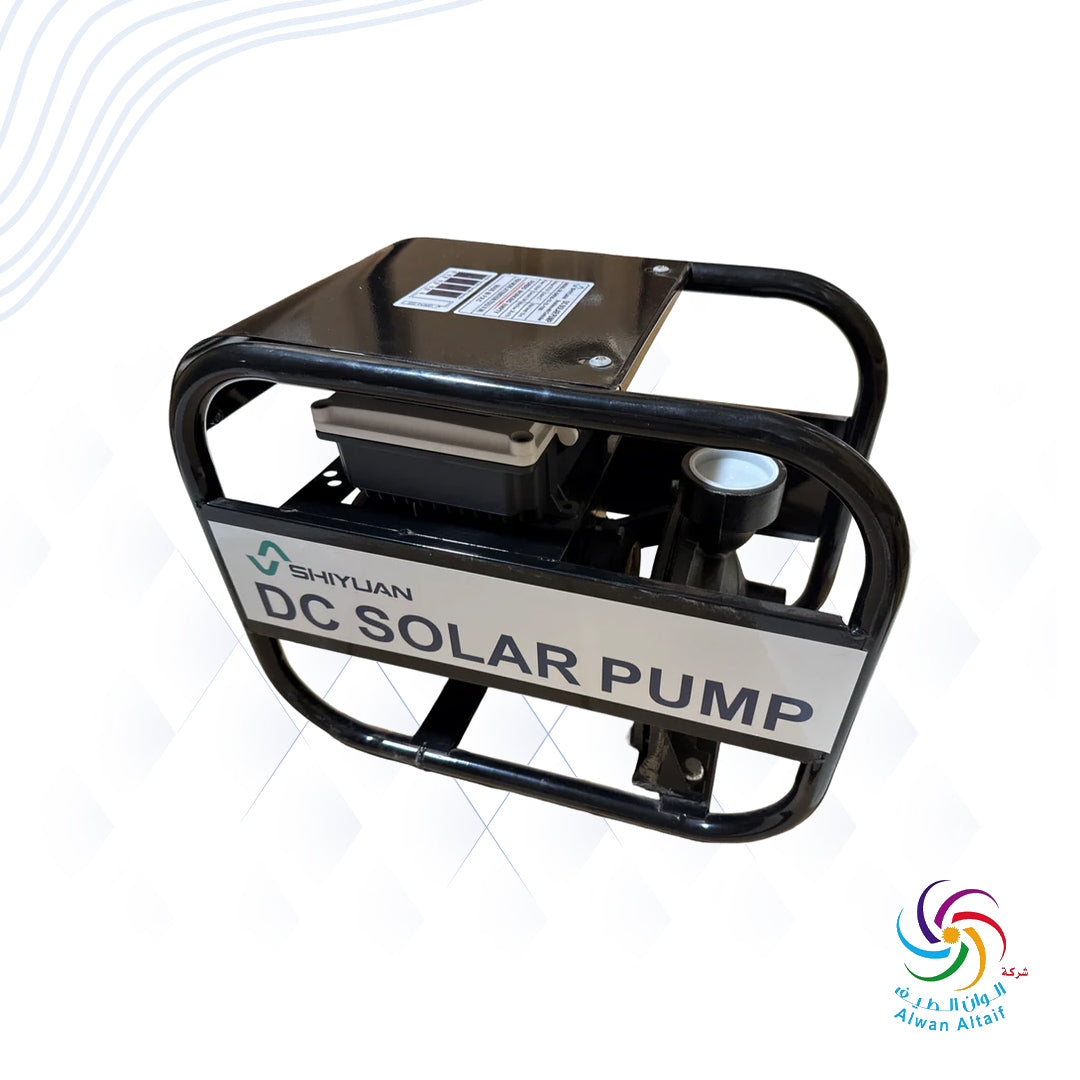

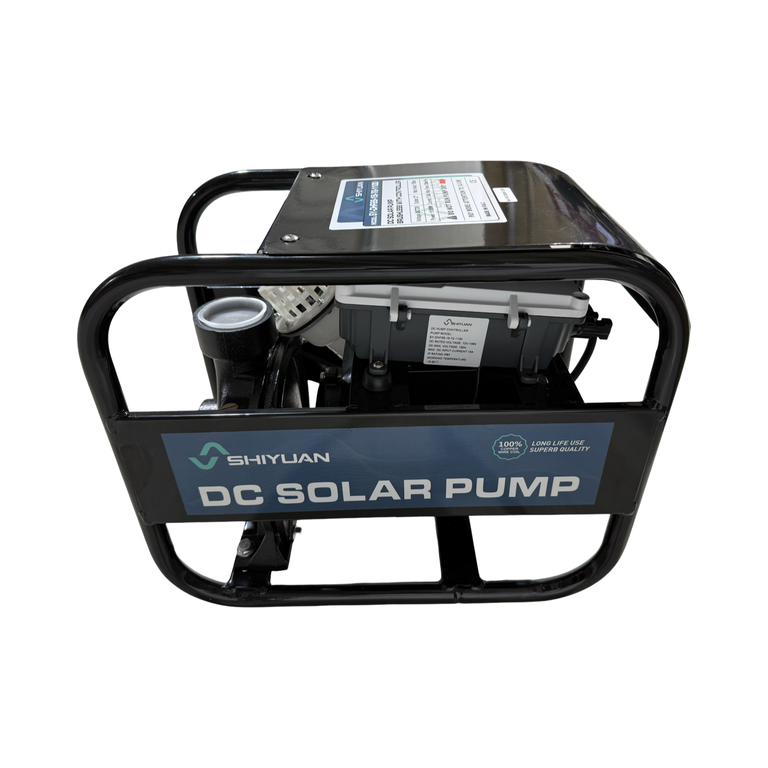

Brushless solar-powered pump, equipped with a built-in controller, to provide reliable and efficient performance in agricultural and hydro solar systems.

Technical Specifications:

Model: SY-DHF26-15-72-1100

Voltage: DC 72V

Power: 1100 Watts

Electric current: 7.8 amps

Maximum pumping height: 15 metres

Maximum water flow: 26 cubic metres per hour

Pump outlet: 2 inch (2′′)

PREVENTS THE PUMP FROM OPERATING WITHOUT WATER (FORBID WORKING EMPTY)

Features and features:

Works efficiently with 4 solar panels with a capacity of 250 watts each (total approximately 1000 watts)

Easy to plug and play thanks to the outline shown below the label

Ideal for irrigation of farmland, mobilising reservoirs, or pulling water from shallow wells

Corrosion-resistant body and brushless motor for long service life

Equipped with a warning to protect against dry operation

Delivery scheme (bottom the label):

The image shows the connection of 4 solar panels (each panel 250 watts) with a serial connection to the controller and then directly to the pump – simplifying the installation process and ensuring operational efficiency.
