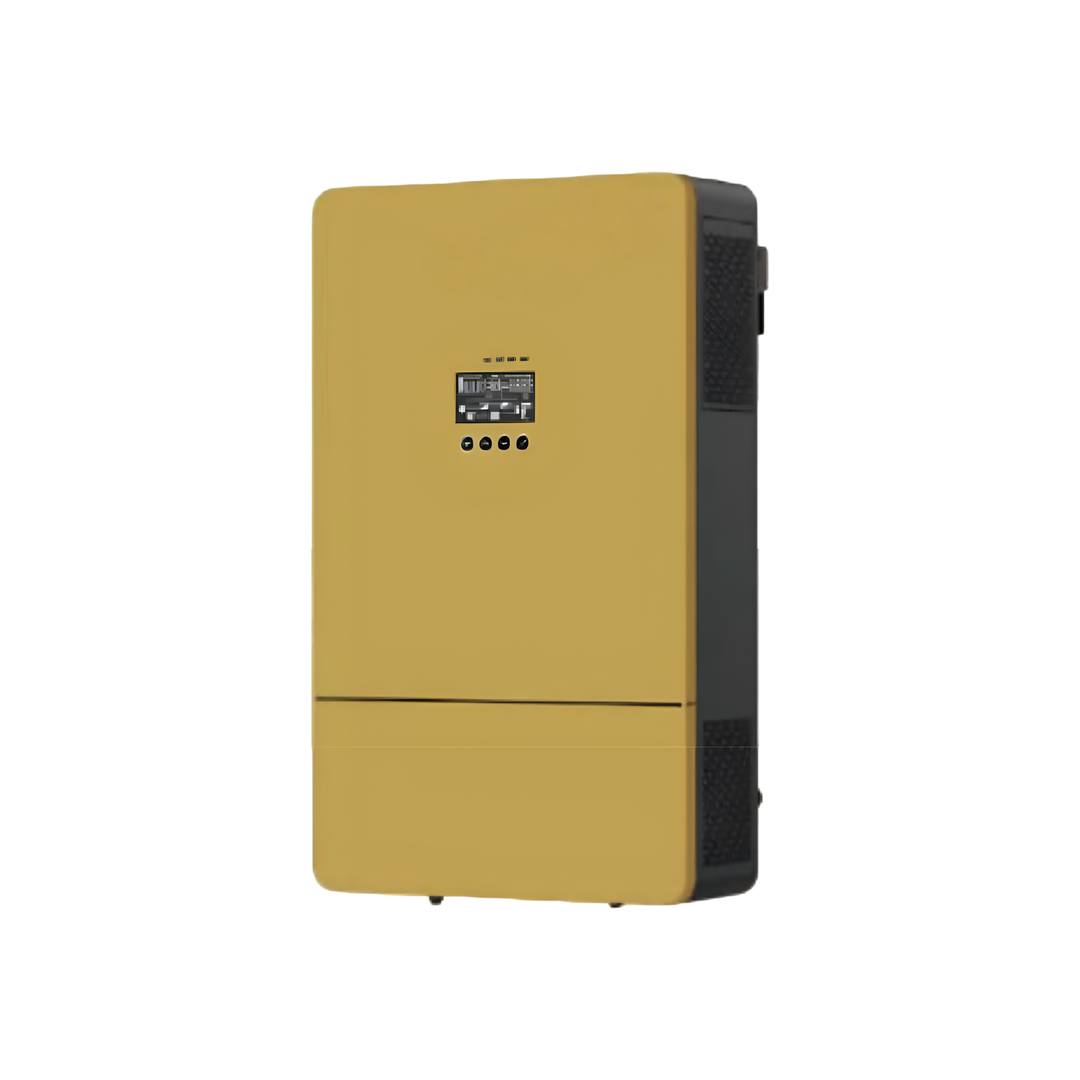

ALN-FXC-48V 6000W Solar Inverter

 Solar Inverter – ALN-FXC-6KW

Rated Power: 6kW

Wave Form: Pure Sine Wave

Supports operation without battery

Ideal for hybrid and off-grid systems

 Main Technical Specifications:

 AC Input:

Rated Input Voltage: 208/220/230/240V~ L+N+PE

Voltage Range: 90~280±3V (Normal Mode)

Frequency: 50/60Hz (Auto Adaptive)

 AC Output:

Rated Capacity: 6kW

Peak Power: 10kW

Output Voltage: 208/220/230/240V

Power Factor: 1

Frequency: 50/60Hz ± 0.1%

Transfer Time: 10ms (Normal/UPS Mode)

Overload Capacity:

     6 seconds @ 102–110% load

     3 seconds @ 130–150%

     0.2 seconds @ ≥150%

Battery Mode Efficiency: 93%@48VDC

 MPPT Solar Charger:

Charger Type: MPPT

Max Input Power: 6000W

MPPT Voltage Range: 120 – 450VDC

Max PV Open Circuit Voltage: 500V

Max Charging Current:

     PV: 80A

     AC: 80A

     PV + AC Combined: 80A

 Battery:

Rated Battery Voltage: 48V

Float Charging Voltage: 54V

Overcharge Protection: 61V

Supported Battery Types: Lithium / Lead-acid

 Interface & Connectivity:

Display: LCD

Communication Ports: RS485 / RS232 / USB / Dry Contact

 General Data:

Ingress Protection: IP20

Operating Temperature: -10℃ to 50℃

Relative Humidity: 5% – 95% (Non-condensing)

Net Weight: 9 kg

Dimensions (W × H × D): 510 × 306 × 115 mm (without bracket)
