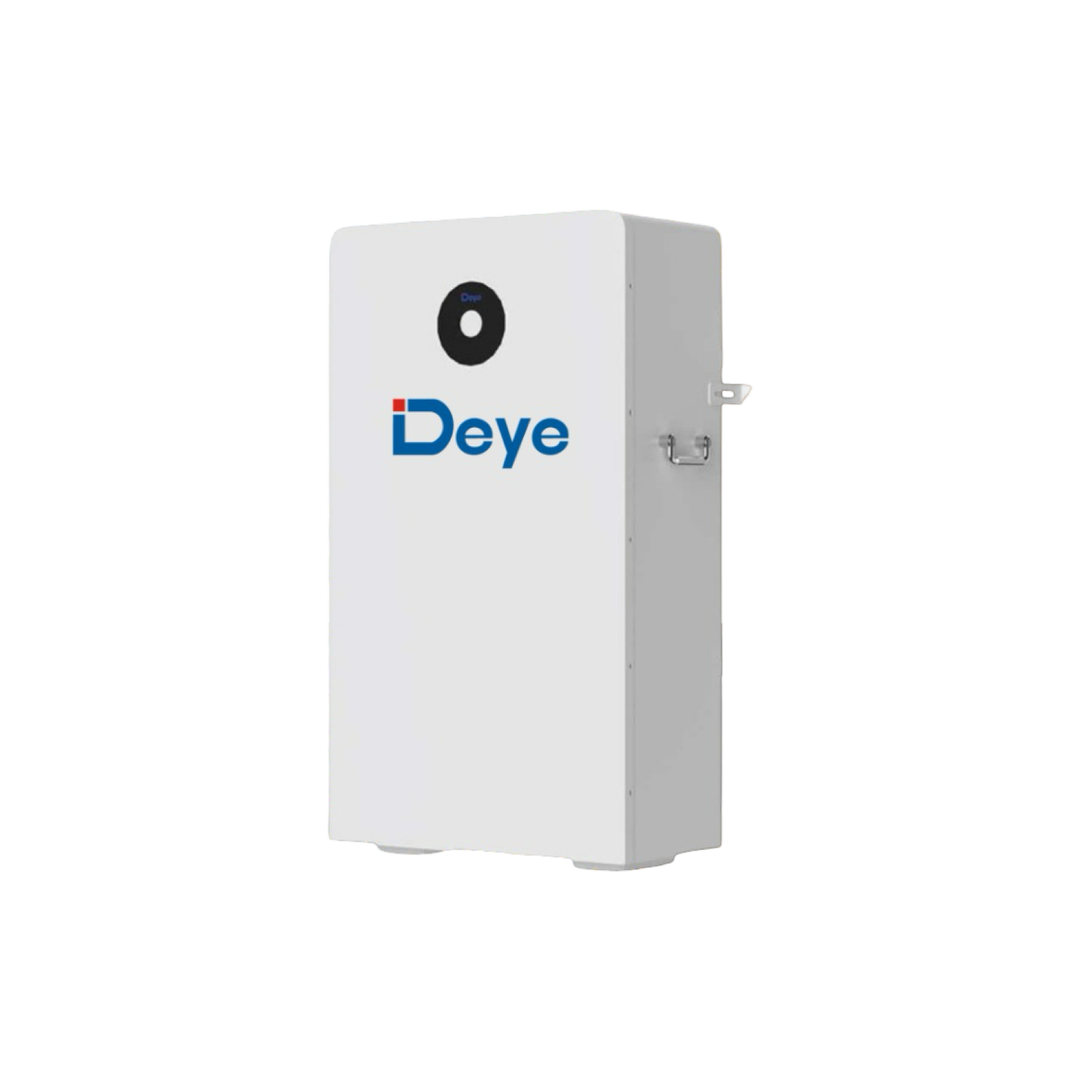

Lithium Battery LiFePO4 48V 314Ah 16kWh Deye RW-F16

Lithium Battery LiFePO4 48V 314Ah 16kWh Deye RW-F16 with 160A Charge and Discharge

The Deye RW-F16 LiFePO4 lithium battery 48V (51.2V) 314Ah stores 16kWh (14.4kWh usable at 90% DOD) for home solar systems and backup power in houses, rest houses, farms and chalets in Kuwait. It supports 160A continuous charge and discharge and up to 32 units in parallel.

Specifications

• Cell type: LiFePO4 (lithium iron phosphate)
• Nominal voltage: 51.2V (48V system), operating voltage 44.8V–57.6V
• Capacity: 314Ah, nominal energy 16kWh, usable energy 14.4kWh at 90% DOD
• Maximum continuous charge / discharge current: 160A / 160A, peak 300A for 10 seconds
• Cycle life: 6000 or more (25°C, 0.5C/0.5C, 90% DOD, 70% EOL)
• Scalability: up to 32 packs in parallel (max 512kWh)
• Communication: CAN2.0, RS485
• Indicator: LED for SOC and working state
• Enclosure: IP20
• Operating temperature: charge 0°C to 55°C, discharge -20°C to 55°C
• Dimensions: 480 x 830 x 235mm, weight about 122kg
• Certifications: UN38.3, MSDS

Features

• Battery modules network automatically with no DIP switches
• Remote monitoring and firmware upgrade through a Deye inverter
• Compatible with any brand inverter for charge and discharge
• Intelligent BMS and built-in 10A constant-current limit charge

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
