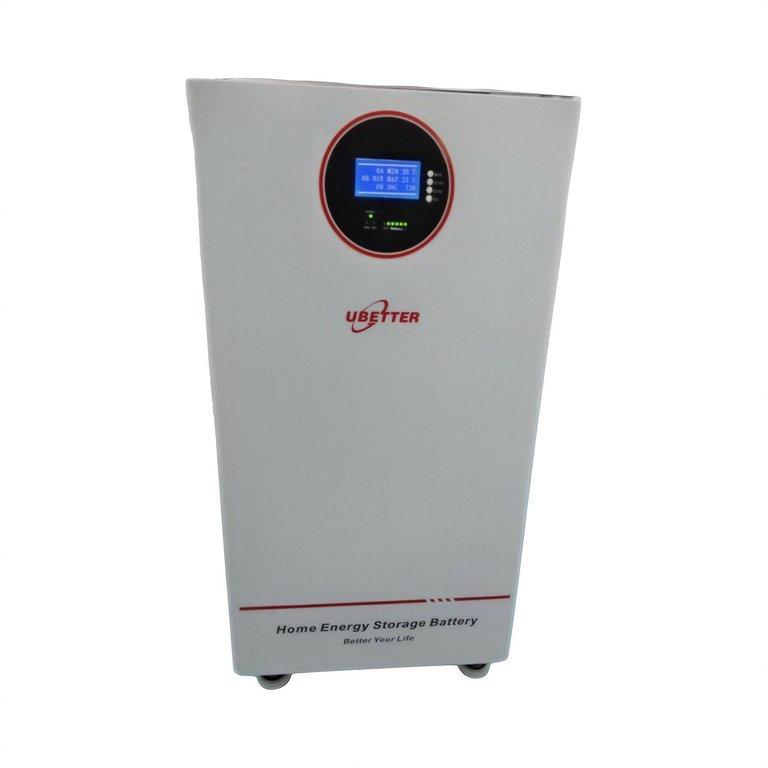

LiFePO4 Lithium Battery 51.2V 600Ah 30kWh

Technical Specifications – LiFePO4 51.2V 600Ah

Electrical properties

Battery Type: LiFePO4

Nominal Voltage: 51.2V

Total Capacity (Total Energy): 30.72kWh

Usable Energy - 90% DOD: 27.65kWh

Voltage range (Voltage Window): 44.8V~58.4V

Loading and unloading

Float Charge Voltage: 56.0V

Low DC Cut-off Voltage: 44.8V

Max Pulse Discharge Current: 450A for 15 seconds

Max Continuous Charge Current: 300A

Operational Cycles (Cycle Life)

>8000 cycles under specified conditions (25℃, 0.5C, 90%DOD)

My design life is more than 10 years

Contact & Support

Communication interface: CAN/RS485

Scalability: 1 to 15 batteries in parallel

Compatibility with smart systems (Smart BMS) to communicate with different types of inverters

Environment and storage

Operating Temperature: -10℃~+50℃

Storage Temperature: 0℃~30℃

Storage period: 6 months at 25℃

Protection Level (IP Rating): IP20

Allowed humidity: 0–95% (non-condensing)

Dimensions and weight

Dimensions (length x width x height):

950 x 245 x 960 mm

Net weight: 230 kg

Gross weight: 262.4 kg

Additional features

7-inch touchscreen

Support multilingual interfaces: Chinese, English, Arabic

Protection from: overcharge, overload, overcurrent, overheat
