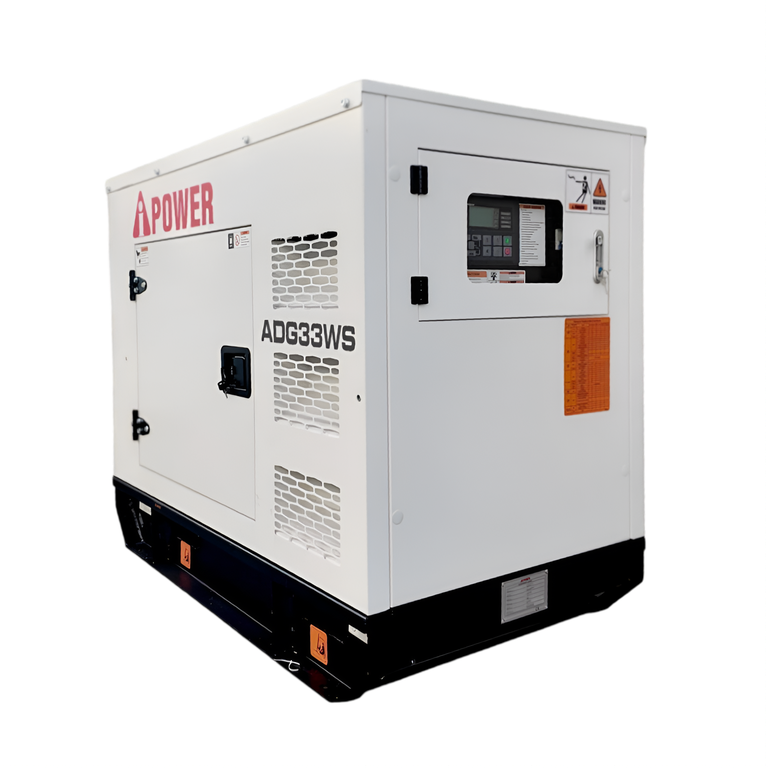

AiPower ADG33WS Silent Diesel Generator 24kW / 30kVA – 3 Phase

Technical Specification of AiPower ADG33WS Silent Diesel Generator

Electrical capacity

Operating Power (Prime): 24 kW / 30 kVA

Emergency capacity (Standby): 27 kW/33 kVA

Voltage: 400V

Maximum current: 43 amps

Frequency: 50Hz

Power Factor: 0.8

Engine Specifications

Brand: Weichai

Model: WP2.3D33E200

Engine Type: Four-Stroke Diesel

Number of Cylinders: 4

Engine power: 30 kW

Engine Capacity: 2.3L

Injection System: Direct Injection

Starting: Electric start

Aspiration: Turbocharged

Cooling System: Water Cooled

Fuel tank capacity: 72 liters

Engine Oil Capacity: 8L

Alternator Specifications

Brand: Senci

Model: QYI-184G

Alternator power: 25 kW at 1500 rpm

Insulation Class: Class H

Protection Grade: IP23

Connection system: 3 phase (3 phase) – 4 wires (Y-Type)

Voltage Regulation: AVR Automatic

Controller: SmartGen HGM6120NC

Dimensions and weight

Dimensions: 2250 x 1000 x 1250 mm

Gross weight: 970 kg

Advantages

High-performance Weichai industrial engine.

High-efficiency Senci alternator.

A cooling system designed to work in high temperatures.

Industrial silencer for quiet operation.

Built-in fuel tank provides long operating hours.
