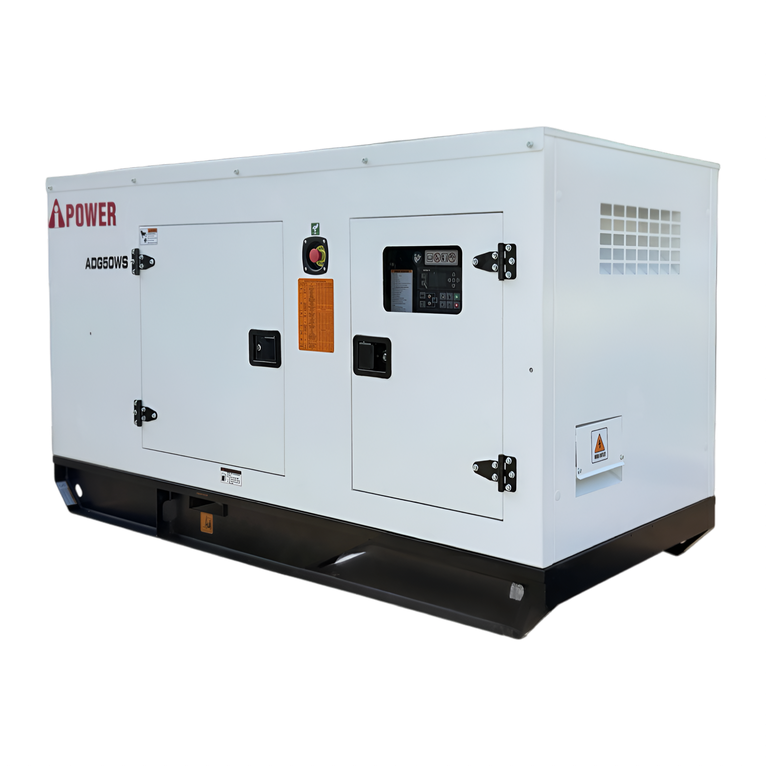

مولد كهربائي منخفض الصوت IPOWER ADG50WS 49.5KVA / 39.6kW

Technical Specification of ADG50WS Silent Diesel Generator

Electrical capacity

Operating Power (Prime): 36 kW/45 kVA (kVA)

Emergency capacity (Standby): 39.6 kW/49.5 kVA

Voltage: 400V

Maximum current: 64.8 amps

Frequency: 50Hz

Power Factor: 0.8

Protection Grade: IP33

Engine Specifications

Brand: Weichai

Model: WP2.3D48E200

Engine Model: High Performance Four-Stroke Diesel

Number of cylinders: 4 cylinders

Power: 48 KW

Engine Capacity: 2.54L

Injection system: Direct injection

Operating System: Electric Operation

Withdrawal regimen: Naturally Aspirated

Cooling System: Water Cooled

Speed Regulator: Electronic

Fuel tank capacity: 100L

Engine Oil Capacity: 8L

Operating time: up to 12 hours at full load (100%)

Specifications of the electric generator (Alternator)

Brand: Senci

Model: QYI-224DS

Capacity: 40 kW at 1500 rpm

Insulation Class: Class H

Protection Grade: IP23

Plug system: 3 phase – 4 wires (Y-Type)

Voltage Regulation: AVR Automatic

Control screen: LED/DC42D

Dimensions and weight

Dimensions: 2250 x 1000 x 1250 mm

Gross weight: 850 kg

Advantages

Weichai's reliable industrial engine designed for hard work.

High efficiency and voltage stability Senci generator.

Efficient cooling system for working in high temperatures.

Industrial silencer for quiet operation and noise reduction.

A large fuel tank that provides long operating hours.
