SKU: 1053

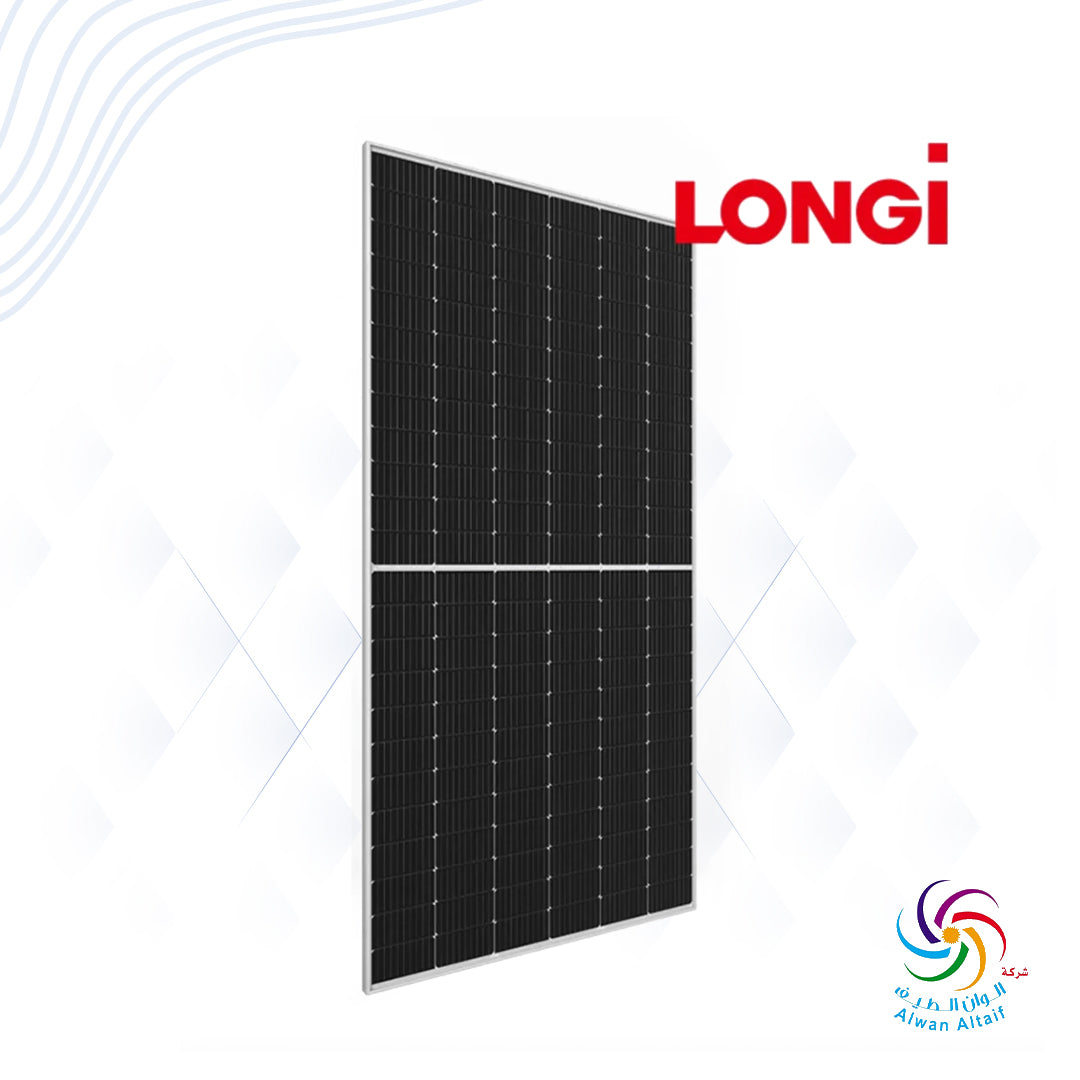

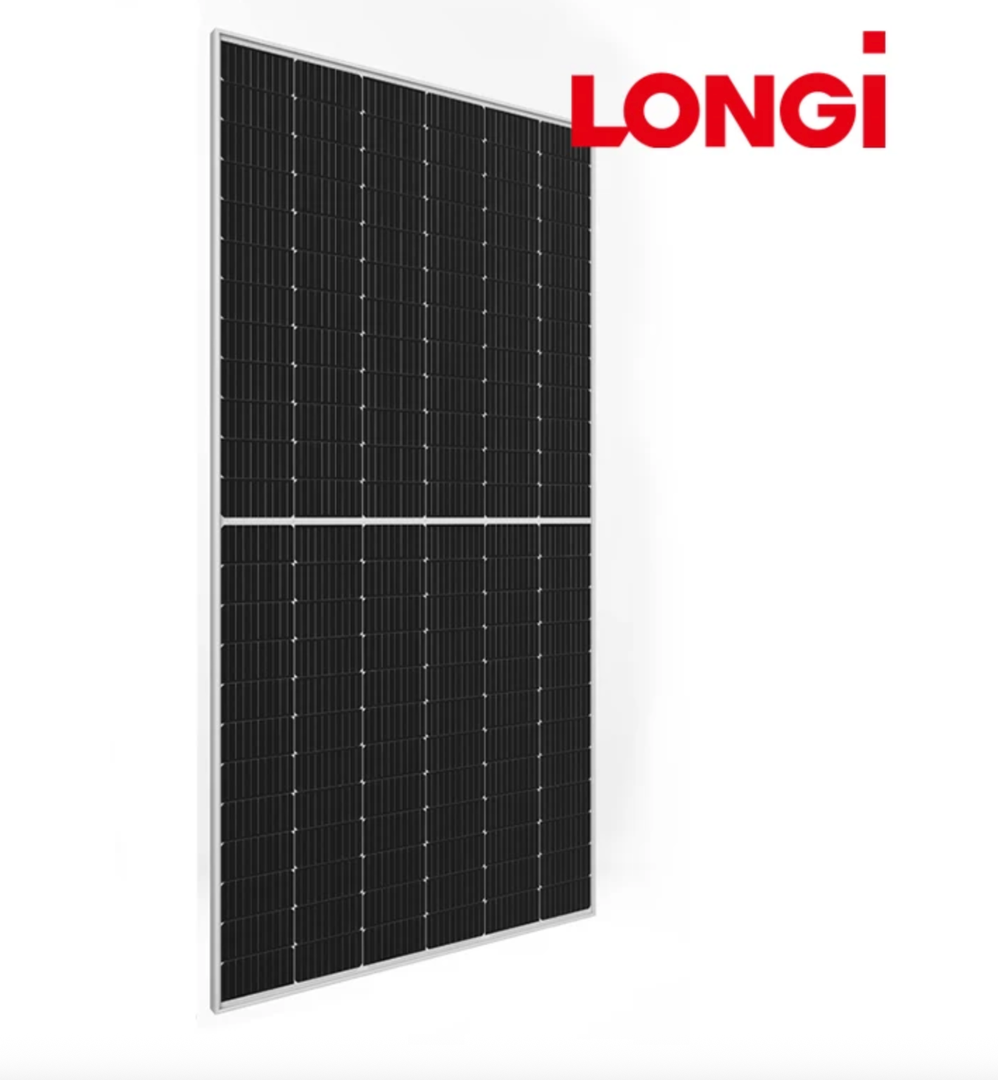

الواح LONGI 615W

29.500 KD
🔧 Electrical Specifications (STC) – For 615W Model:
  1. Maximum Power (Pmax): 615 W
  2. Open Circuit Voltage (Voc): 48.58 V
  3. Short Circuit Current (Isc): 16.00 A
  4. Voltage at Maximum Power (Vmp): 40.71 V
  5. Current at Maximum Power (Imp): 15.11 A
  6. Module Efficiency: 22.8%
🌡️ Thermal Specifications:
  1. Temperature Coefficient of Isc: +0.045% / °C
  2. Temperature Coefficient of Voc: -0.230% / °C
  3. Temperature Coefficient of Pmax: -0.280% / °C
  4. Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C
  5. Operating Temperature Range: -40 to +85 °C
⚙️ Mechanical Characteristics:
  1. Dimensions: 2382 × 1134 × 30 mm
  2. Weight: 33.5 kg
  3. Number of Cells: 132 half-cells (6 × 22)
  4. Glass Type: Dual tempered glass (2.0 + 2.0 mm)
  5. Frame: Anodized aluminum alloy
  6. Junction Box: IP68 – with 3 bypass diodes
  7. Output Cable: 4 mm², length: +400 mm, -200 mm or ±1400 mm (customizable)
🛡️ Environmental Resistance:
  1. Maximum Front Load: 5400 Pa
  2. Maximum Rear Load: 2400 Pa
  3. Hail Test: 25 mm hailstone at a speed of 23 m/s
🔌 Operational and Safety Standards:
  1. Maximum System Voltage: 1500V DC (IEC/UL)
  2. Maximum Series Fuse Rating: 35 A
  3. Protection Class: Class II
  4. Fire Rating: UL Type 29, IEC Class C
  5. First-Year Power Degradation: <1%
  6. Annual Power Degradation (Years 2–30): 0.4%
