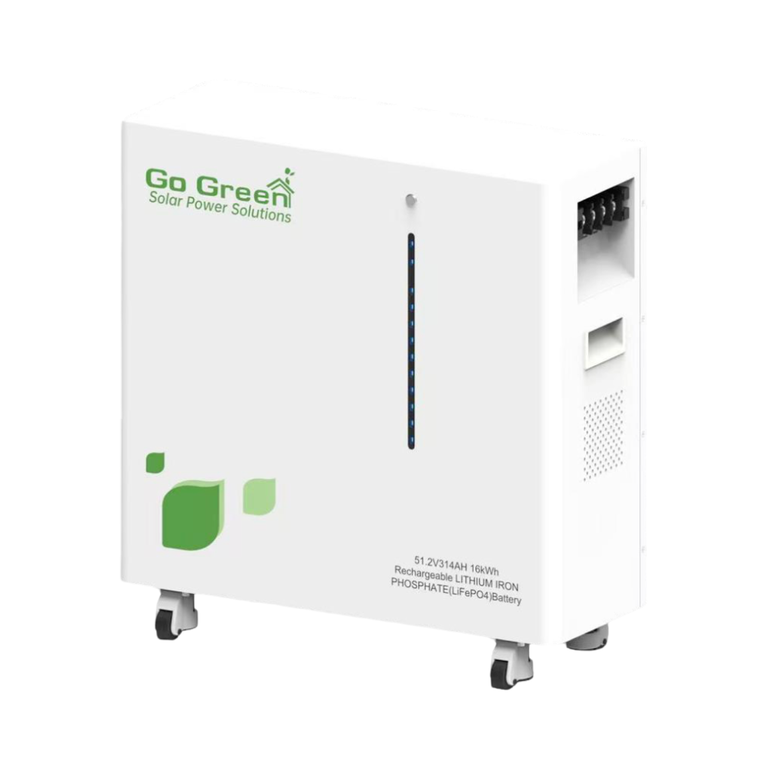

GO-Green GGESS LiFePO4 Lithium Battery 16kWh 51.2V 314Ah

GGESS Home Power Battery – 16 kWh

Power Capacity: 16KWh

Voltage and Capacity: 51.2V – 314Ah

Cell Type: High Security and Efficiency LiFePO4

Cell composition: 16S1P

The most important features

Protection from increased charging

Over-discharge protection

High temperature protection

Protection from the short circuit

Advanced BMS battery management system

Over and low voltage protection

Thermal protection

High current protection

Cell balancing function

Locking feature when low battery

Performance

Optimized charging current: 100A

Maximum constant discharge current: 150A

Lifespan: more than 6000 charging cycles

Ability to connect up to 6 batteries in parallel to increase capacity

Operating conditions

Charging temperature: 0 to 60°C

Discharge temperature: -20 to 60°C

Communication and communication

Interfaces: RS485 – RS232 – CAN – UART

Protection level: IP20

Dimensions and weight

Dimensions:

L680×W270×H710 mm

Net weight: 125 kg
