SKU: 2102

محول لمضخات الماء KW11 Solar VFD Pump

Regular price 210.000 KD

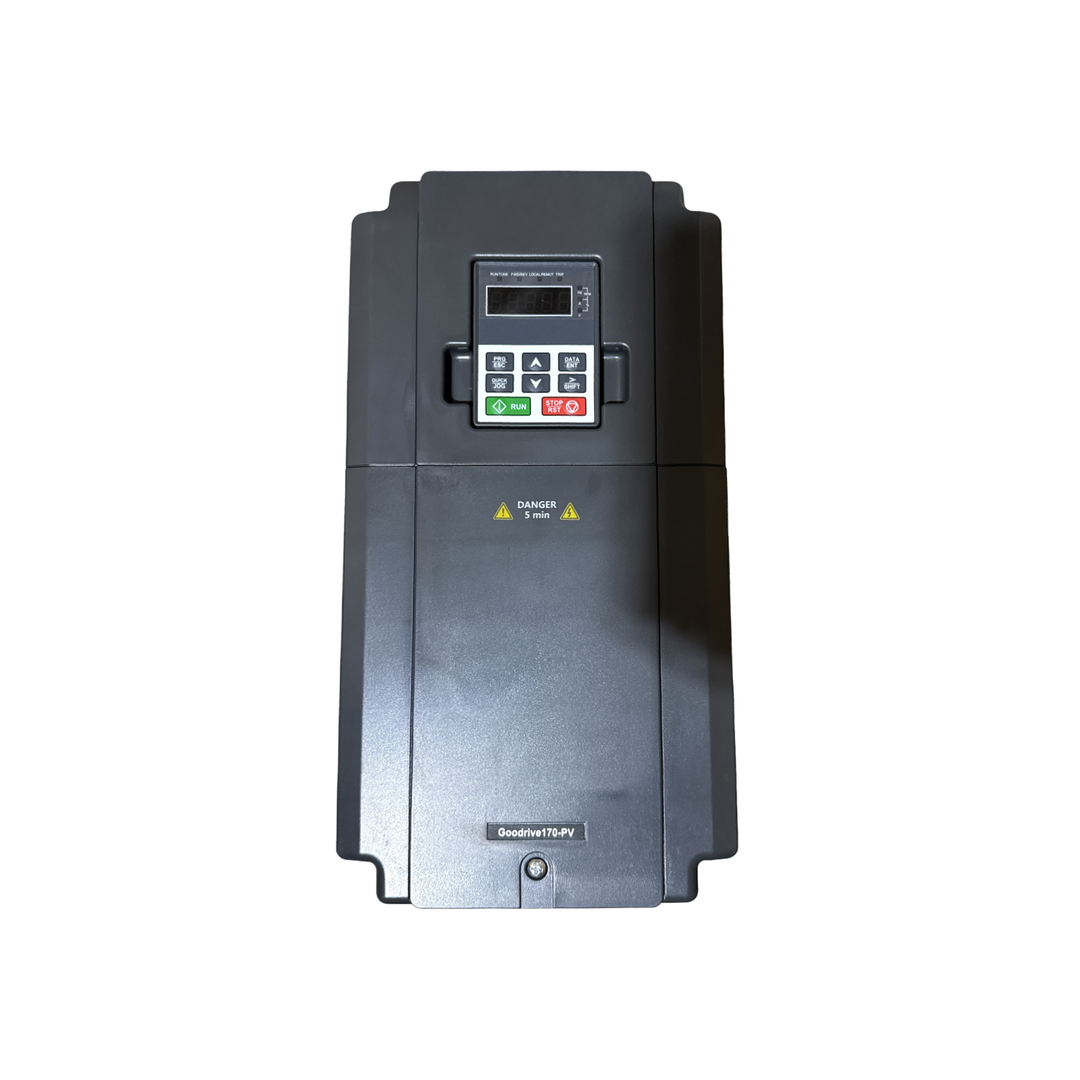

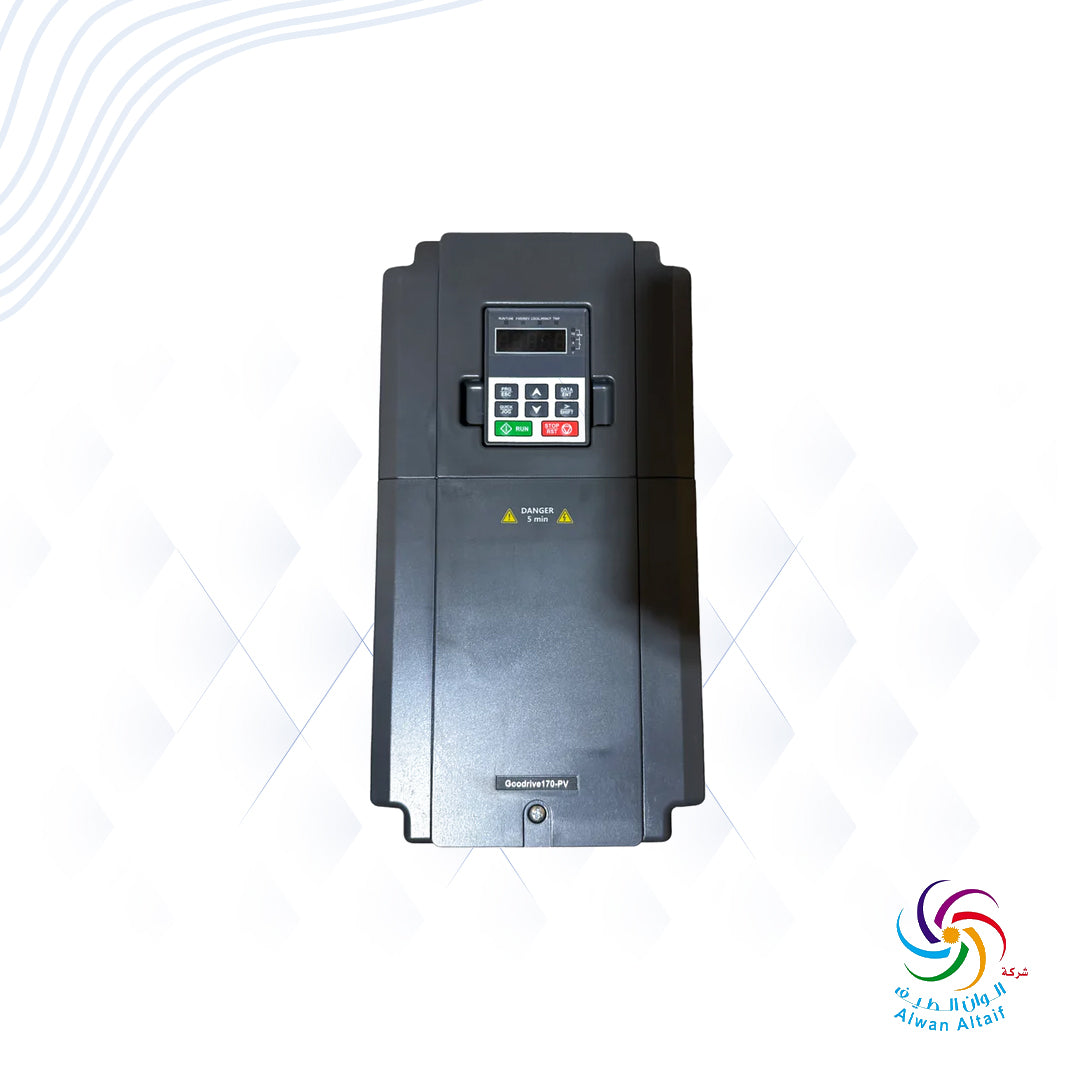

⚡ Solar Controller – INVT GD170-011-4-PV


Professional inverter device for converting solar energy into three-phase electrical energy, ideal for operating pumps and equipment in agricultural and industrial environments.


🔧 Technical Specifications:


🔹 Model: GD170-011-4-PV


🔹 Electrical capacity: 11 kW


🔹 Maximum voltage of solar energy (PV): up to 900 volts DC


🔹 Second input (alternative): 3 phase from 380V (-15%) to 440V (+10%)


🔹 Input current (AC): 32 amps


🔹 Supported frequency: 47Hz to 63Hz


🔹 Output: 0V three-phase current up to input voltage / 25 amps / frequency from 0Hz to 400Hz


🔹 Preventive classification: Class 1


🔹 Protection level: IP20


🔹 Dimensions: 430mm x 280mm x 330mm


🔹 Gross weight: 6.26 kg


🔹 Compliance: CE and RoHS certified



✅ Main features:


🔹 Supports solar or AC network operation


🔹 High voltage and frequency flexibility to ensure compatibility with various pump systems


🔹 Designed to meet difficult and continuous operating conditions


🔹 Relatively lightweight and easy to install


🔹 Safe and reliable with multi-layer internal protection system
