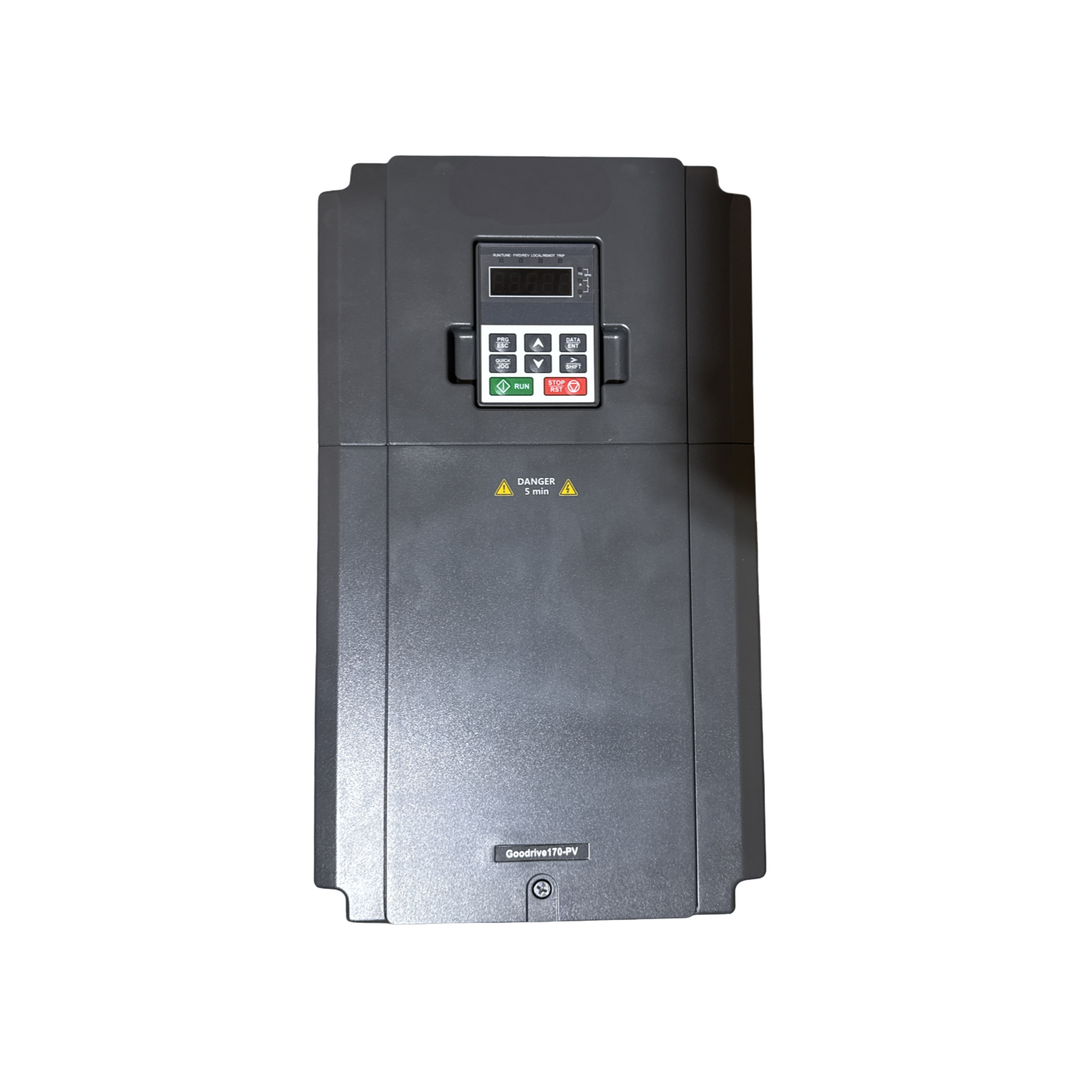

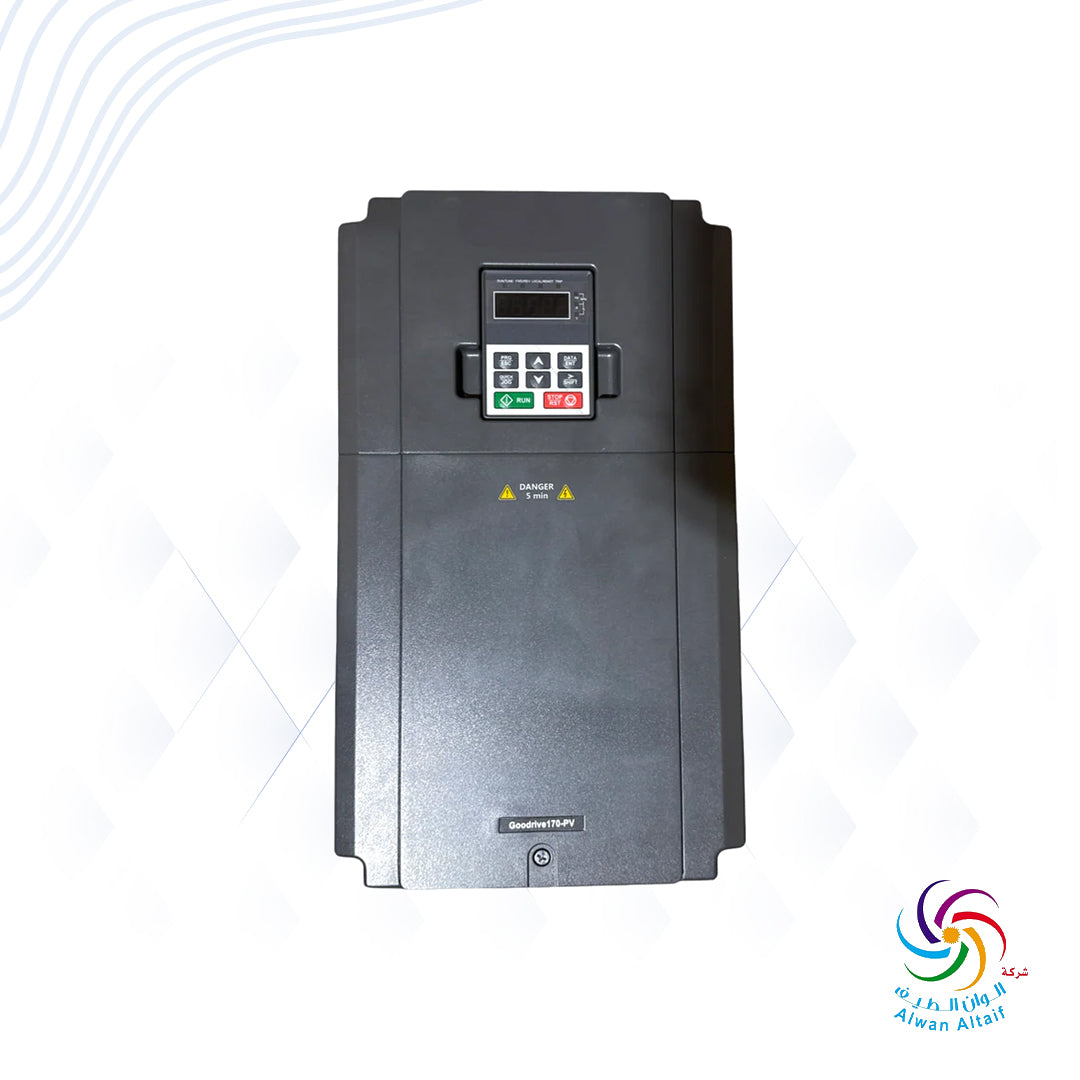

Solar VFD Pump Inverter 30kW 380V 3-Phase INVT GD170-030-4-PV

Solar VFD Pump Inverter 30kW 380V 3-Phase INVT GD170-030-4-PV with MPPT

30kW solar pump inverter (VFD) INVT GD170-030-4-PV that runs a 3-phase 380V water pump directly from solar panels with MPPT, with a 3-phase AC input as a second source, for farms, wells, irrigation and livestock water in Kuwait.

Specifications

• Model: INVT GD170-030-4-PV (Goodrive170-PV series)
• Rated output power: 30kW
• Solar input: maximum PV DC voltage 900V
• Recommended PV voltage range: 300–750V DC, recommended MPP voltage 550V
• Start-up voltage 300V DC, minimum working voltage 250V DC
• Maximum DC input current: 81A
• AC input: 3-phase 380–440V, 70A, 47–63Hz
• Output: 3-phase, 0V to input voltage, 60A, 0–400Hz
• Protection degree IP20, CE and RoHS marked

Features

• MPPT maximum power point tracking to get the most from the panels
• Water level control: sleeps when the tank is full or the well is empty and restarts automatically
• Dry-run (underload) protection for the pump
• Sleeps in weak sunlight and wakes up automatically, and can switch over to the 3-phase AC supply when set

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
