GO-Green GGIV-1P-10KW Solar Hybrid Inverter – Single Phase 10kW 48V

GO-Green GGIV-1P-10KW Solar Hybrid Inverter – Single Phase 10kW 48V

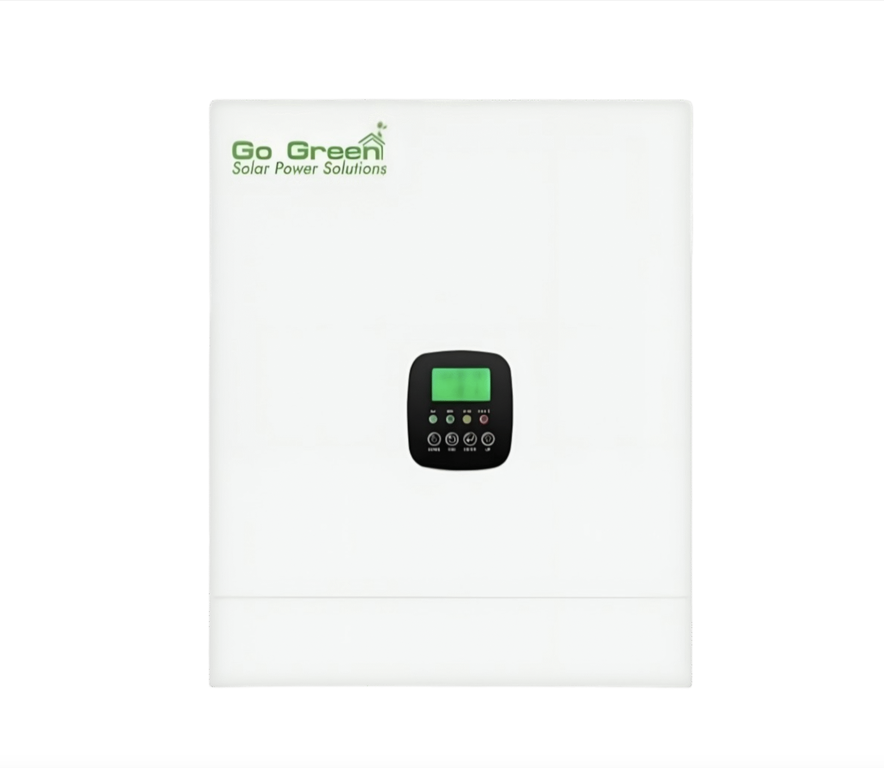

GO-Green GGIV-1P-10KW single-phase solar hybrid inverter, 10kW with a 48V battery system, two MPPT solar inputs (6000W each) and pure sine wave output. It works on-grid, off-grid and in hybrid mode with lithium or lead-acid batteries, and suits villas, houses, rest houses, farms and commercial solar systems in Kuwait.

Specifications

• Brand and model: GO-Green GGIV-1P Series 1P-10KW (VTR) (Go Green Solar Power Solutions)
• Rated output: 10kW – single phase 230V – 50/60Hz – 44.5A – power factor above 0.98
• Off-grid output: 10kW pure sine wave, 230V ±2%, frequency ±1%
• Solar input: 2 MPPT trackers – max 6000W and 22A per input – MPPT range 80–450V DC – rated voltage 360V DC – max PV open-circuit voltage 500V DC
• Battery: 48V DC – lithium, lead-acid or custom
• Charging: max 180A from solar, 120A from the grid, 180A total
• AC input: 230V single phase, 50/60Hz, max input current 77.2A
• Max efficiency 94% (battery mode) – MPPT efficiency ≥99.9% – transfer time 10 ms

Features

• On-grid, off-grid and hybrid operation
• LCD + LED display – RS485 – mobile app monitoring (WiFi or GPRS optional)
• Protection: battery low-voltage alarm (44V) and cut-off (42V), overload and short-circuit protection, anti-islanding and over-temperature shutdown
• Intelligent cooling fan – noise ≤55dB – IP20 – wall mounted
• Operating temperature -10°C to 50°C, humidity 0–95% (non-condensing)

Dimensions and weight

• Dimensions (L × W × H): 53.5 × 46.2 × 11.7 cm – package 63 × 55.7 × 21.2 cm
• Net weight: 14.7 kg – gross weight 17 kg

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
