SKU: 2097

محول هيبرد hybrid AK-10.2K48VDC

Regular price 350.000 KD

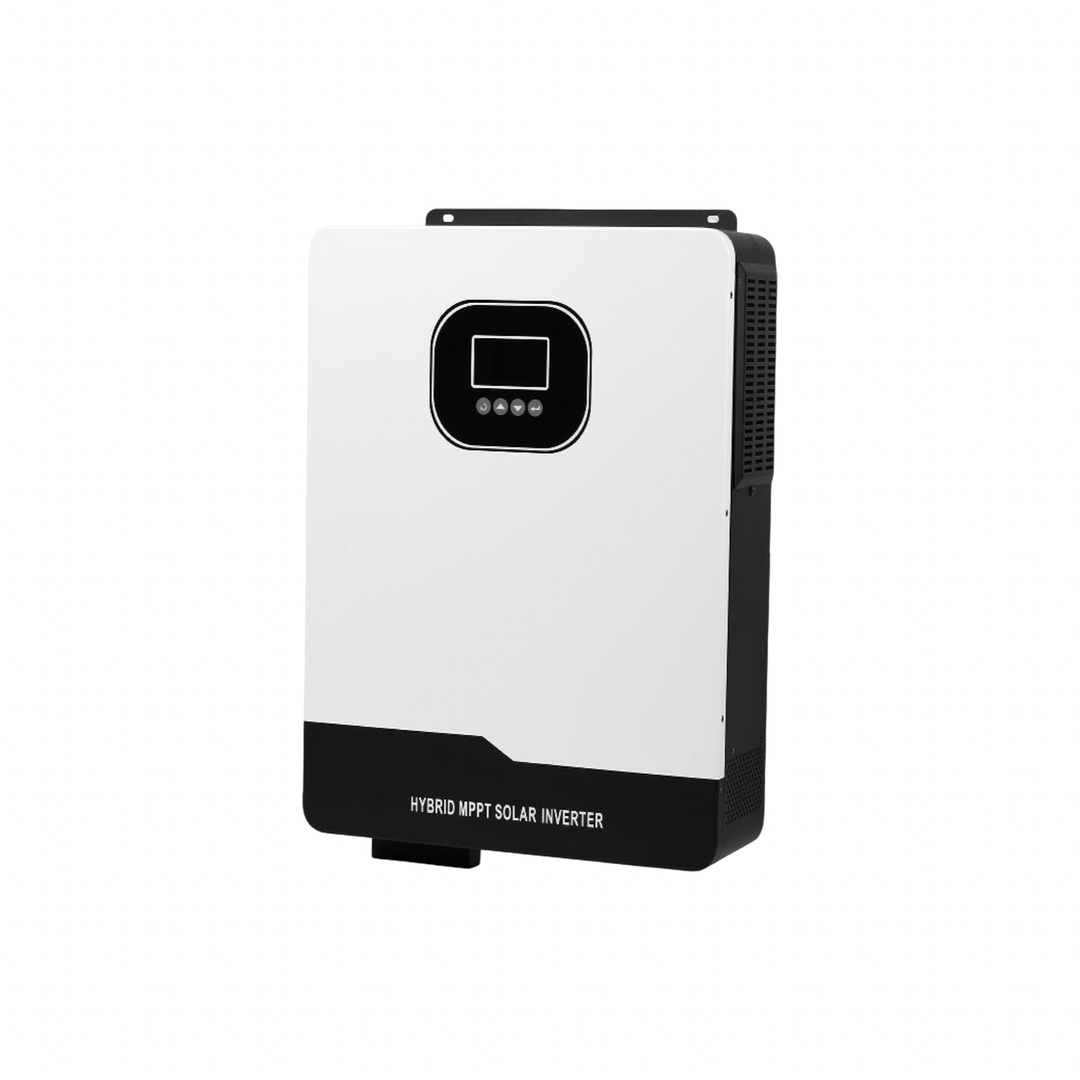

📢 Professional Inverter Charger – Model AK-10.2KVA-48V


We offer you this multifunctional device with excellent technical specifications, designed to work efficiently with modern energy systems.


🔧 Technical Specifications:


🔋 Model: AK-10.2KVA-48V

🎨 Color: White and Black

🌡️ Operating Temperature Range: -10 to 50°C

☀️ Solar Input (PV Input):

  1. Nominal Voltage: 360Vdc
  2. Maximum Voltage: 500Vdc
  3. Input Voltage Range: 90–450Vdc
  4. Maximum Current: 27.0A
  5. Full Load MPPT Range: 360~450Vdc
  6. Rated Power: 10200W / 10200VA
  7. Max Solar Charging Current: 180A

⚡ Grid/AC Output:

  1. Nominal Output Voltage: 220/230/240Vac
  2. Grid Voltage Range: 195–253Vac
  3. Grid Frequency Range: 49–51±1Hz
  4. Nominal Output Current: 44.3A
  5. Power Factor: >0.99
  6. Max Conversion Efficiency: 98%
  7. Nominal Operating Frequency: 50Hz


🔌 Load Output Capacity:

  1. Full Load: 10200W
  2. Max Main Load: 10200W
  3. Max Secondary Load: 3400W
  4. Main Load Cut-Off Voltage: 44VDC
  5. Main Load Return Voltage: 52VDC


⚡ AC Input:

  1. Nominal Voltage: 230Vac
  2. Max Input Current: 50A
  3. Frequency: 50/60Hz
  4. Surge Power: 20400VA
  5. Max AC Charging Current: 140A


🔋 Battery:

  1. Battery Voltage Range: 40–63VDC
  2. Max Battery Current: 212.5A

✅ Ideal for solar systems, smart homes, industrial or commercial use

✅ High performance and excellent efficiency

✅ Supports both solar and grid charging simultaneously
