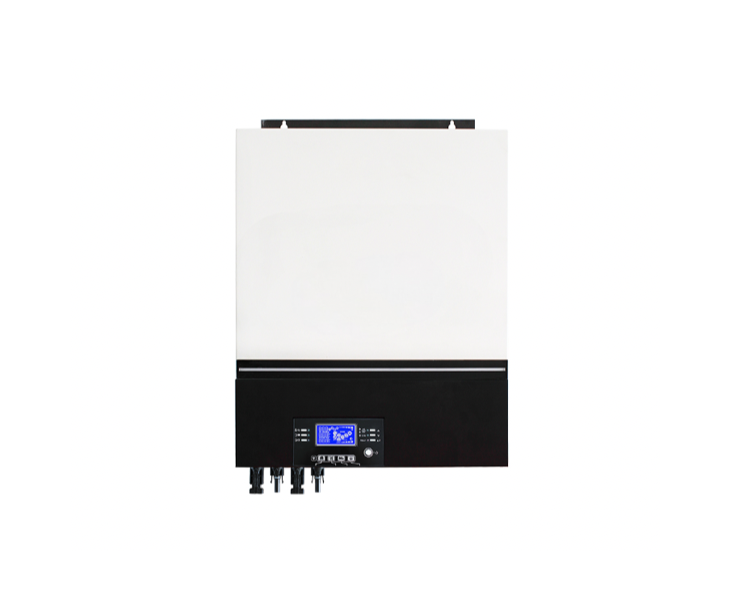

Hybrid converter hybrid SC-MAX8KWⅡ

Model: Hybrid Inverter SC-MAX8KWⅡ  Sleek black and white design  Operating Temperature: -10°C to +50°C

Key Technical Specifications Inverter Mode

1. Power: 8000VA / 8000W
2. DC Input: 48VDC – 182.2A
3. AC Output: 230VAC – 50/60Hz – 34.8A | Single Phase (1Φ)

AC Charger Mode

1. Input: 230VAC – 50/60Hz – 55.7A
2. DC Output: 54VDC (Max 120A – Default 30A)
3. AC Output: 230VAC – 50/60Hz – 34.8A | Single Phase (1Φ)

Solar Charger Mode.

1. Total Power: 4000W × 2
2. Nominal Voltage: 240VDC
3. Maximum Solar Voltage (VOC): 500VDC
4. MPPT Range: 90V to 450VDC

Additional Features

1. Protection Rating: IP21
2. Compliance: RoHS and CE compliant
3. Made in China
4. Product Code: Z92932125032702

Why Choose This Inverter?

1. High efficiency with MPPT technology
2. Flexible operation for solar and hybrid systems
3. Ideal for residential and commercial applications
4. Professional design resistant to heat and humidity
