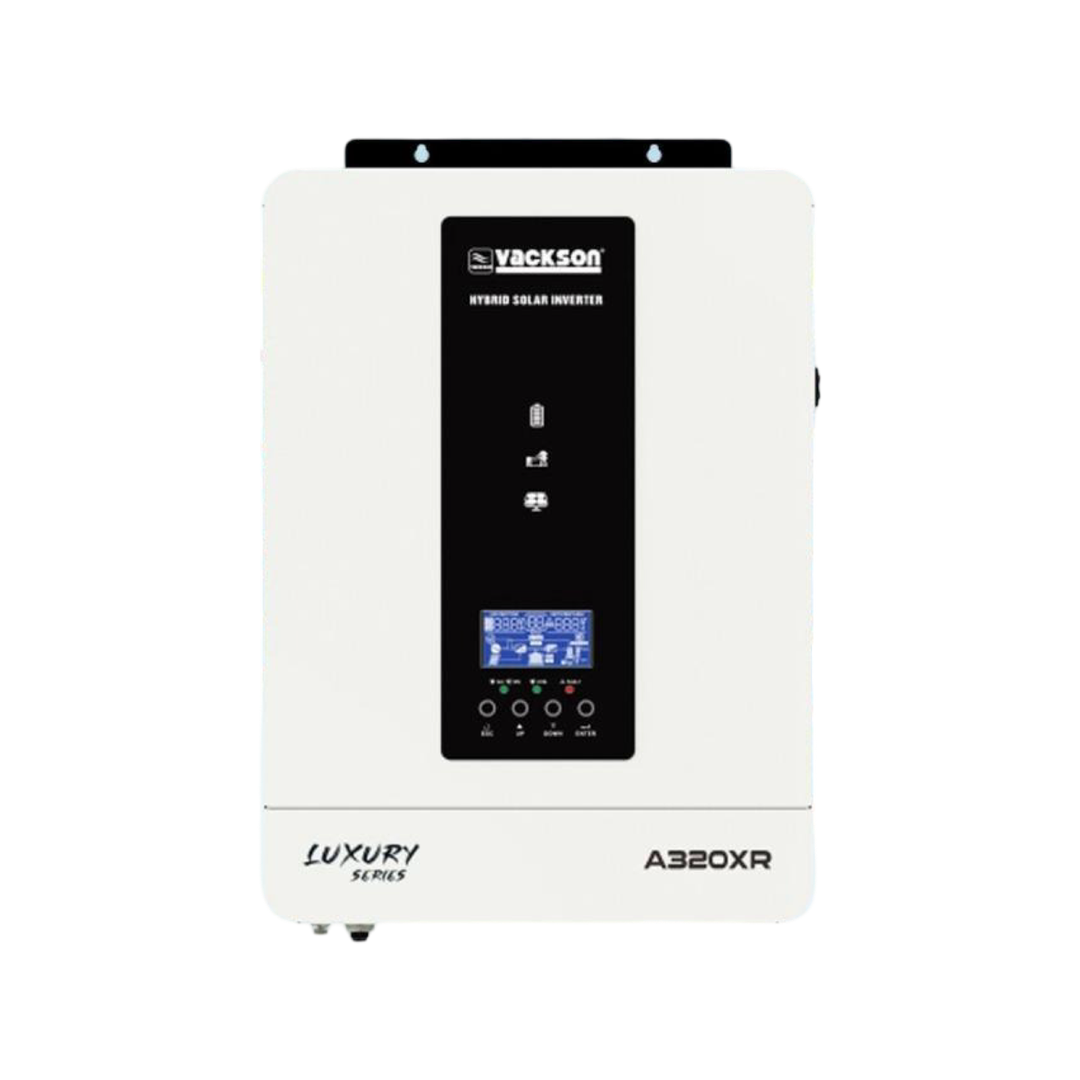

VACKSON 3.2kVA/24V Inverter

Solar Inverter VACKSON A320XR

Off-Grid Solar Reflector | American Design | Unlimited Strength and Efficiency

Inverter Mode

Nominal capacity: 3200VA/3000W

DC input: 24V DC/125A

AC output: 230V AC | 50hz | 13A | Single phase (1 Φ)

AC Charger Mode

AC input: 230V AC|50/Hz|21.3A|1Φ

Maximum charging current: 60A (default 30A)

AC output: 230V AC|50/60Hz|13A|1Φ

Solar Charge Mode

Nominal Capacity: 3000W

Nominal operating voltage: 240V DC

Maximum Voltage of Solar Panel (VOC): 450V DC

MPPT range: 55 – 450V DC

Maximum input current of panels: 10A

Maximum MPPT Current (Isc): 13A

Maximum solar charging current: 80A

Battery Mode

Battery input: 24V DC/125A

Compatible battery types: Lead Acid / Lithium

Protection and reliability

Protection grade: IP21

Protection Class: Class I

Overvoltage Class: OVC III

1. Operating temperature range: -10°C to 55°C
