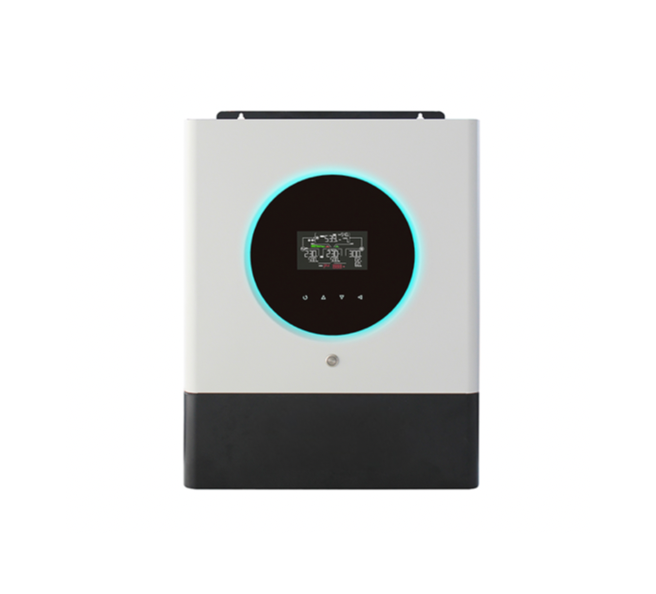

Hybrid Solar Inverter 8kW 48V Dual MPPT SC-MAX8KW II

Hybrid Solar Inverter 8kW 48V with Dual MPPT 2 × 4000W – SC-MAX8KW II

8kW hybrid solar inverter for 48V battery systems, with two built-in MPPT solar chargers of 4000W each and grid charging up to 120A. Suitable for homes, rest houses, farms and chalets in Kuwait.

Specifications

• Model on the unit label: MAX II-8000W
• Rated power: 8000VA / 8000W
• Battery voltage: 48V DC (DC input up to 182.2A)
• AC output: 230V, 50/60Hz, single-phase, 34.8A
• Grid charging: AC input 230V 50/60Hz (55.7A), charging voltage 54V, up to 120A (default 30A)
• Solar input: 2 MPPT chargers × 4000W (8000W total)
• Nominal PV operating voltage: 240V DC; MPPT range 90–450V DC
• Maximum PV open-circuit voltage (Voc): 500V DC
• Enclosure: IP21
• Operating temperature: -10 to 50°C
• Certifications: CE, RoHS

Features

• Two independent MPPT solar inputs, 4000W each.
• Charges the batteries from solar panels and from the grid.
• Wide 90–450V MPPT range for panels wired in series.
• Runs 230V household appliances from batteries and solar.

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
