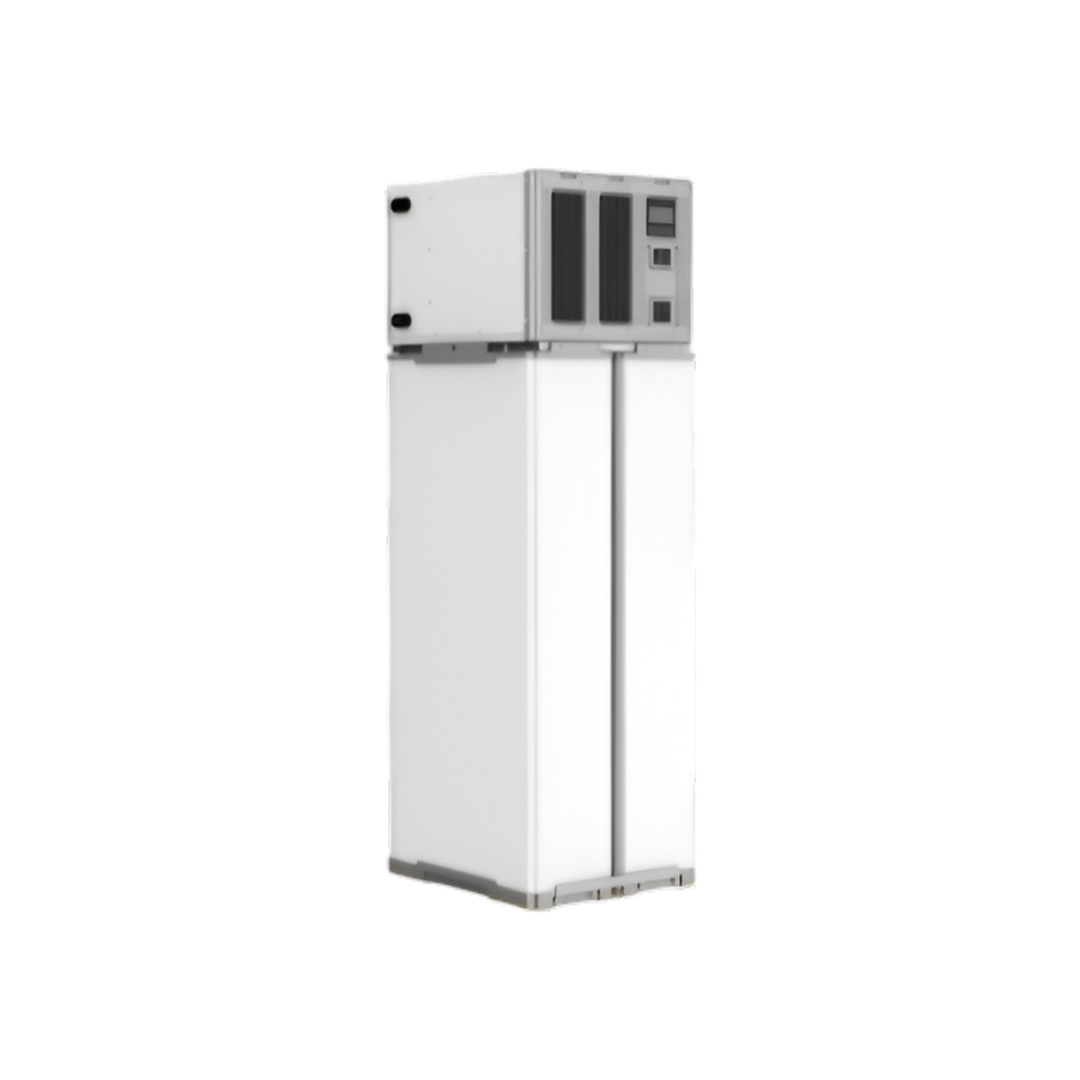

220V/12KW, 30KWH

Integrated solar energy system with a capacity of 30 kWh

From the spectrum colours of quality company - an advanced technology for storing and converting energy with high efficiency

Capacity: 12kW

Voltage: 220V

Capacity: 30kWh

Number of panels 16 panels, 550 watts each

Integrated system for charging, storage and reversing (Charging, Storage & Inversion Integration)

Technical Specifications:

Battery:

Nominal Capacity: 600Ah

Nominal voltage: 48V

Storage capacity: 30kWh

Inverter (AC Output):

Maximum power: 12kW

Voltage: 208/220/230/240V

Power Factor: 1

Frequency: 50/60Hz±2.0%

Switching time: 10ms (normal) / 10ms (UPS)

Wave Type: Pure Sine Wave

Battery efficiency: 93%@48VDC

Overload:

60s@102–110% Load

10s@110–130% load

3s@130–150% load

0.2s@>150% load

Parallel Connectivity: 4 groups (total capacity 48kWh)

Solar/AC input (PV/AC input):

Rated input voltage: 208/220/230/240V+N+PE

Interphose Voltage Range:

90–280V (normal)

170–280V(UPS)

Charger Type: MPPT

MPPT range: 120–450VDC

Open voltage of PV circuit: 500V

Solar inlet capacity: 6000W×2

Maximum charging current per unit: 80A

Total Charging Current (PV+AC): 80A

System Characteristics:

Smart LCD Display

220V static outlet for home appliance operation

Compact and quiet design suitable for indoor use

Intelligent control of charging and storage

High energy conversion efficiency

Stable and safe operation around the clock

Ideal uses:

Homes - Shops - Clinics - Slow Charging Stations - Outdoor Lighting - Basic Medical Devices

Safe and sustainable energy... Anytime and anywhere

Spectrum Colours for Quality – The Future of Solar Energy in Kuwait
