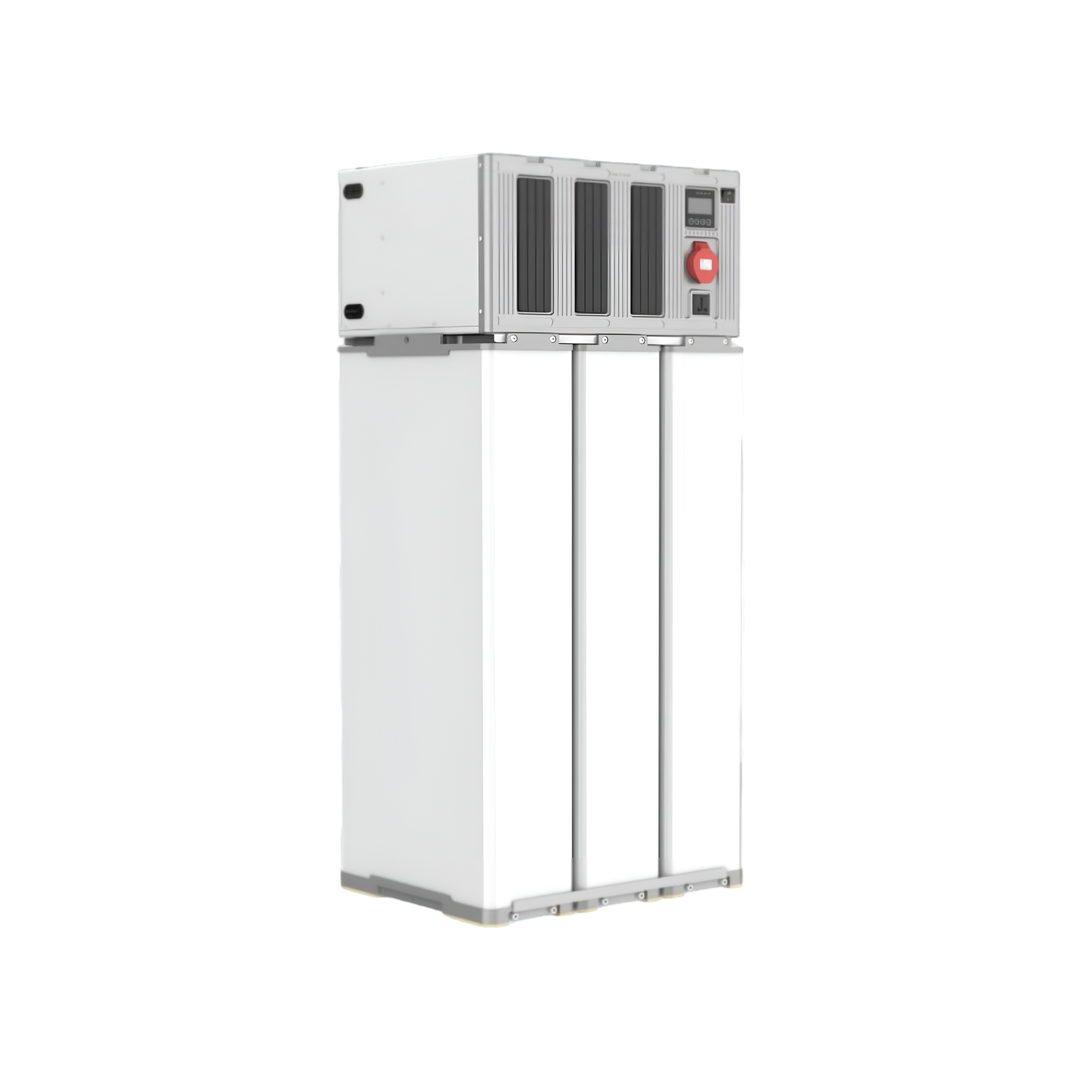

Solar System 18kW / 45kWh – 380V

Integrated solar energy system with a capacity of 45 kWh

From the spectrum colours of quality company – the smart solution for generating and storing clean energy

Capacity: 18kW

Voltage: 380V

Battery capacity: 45kWh

Number of panels 24 panels, 550 watts each

Integrated system for charging, storage and reversing (Charging, Storage & Inversion Integration)

Technical Specifications:

Battery:

Nominal Capacity: 900Ah

Nominal voltage: 48V

Storage power: 45kWh

Inverter (AC Output):

Maximum power: 18kW

Voltage: 360/380/397/415V

Frequency: 50/60Hz±2.0%

Power Factor: 1

Switching time: 10ms (normal) / 10ms (UPS)

Wave Type: Pure Sine Wave

System efficiency in battery mode: 93%@48VDC

Overload:

60s@102–110% Load

10s@110–130% load

3s@130–150% load

0.2s@>150% load

Maximum parallel connection quantity: 3 groups (54kWh capacity)

Solar/AC input (PV/AC input):

Rated input voltage: 360/380/397/415V(L+U/V/W+N+PE)

Interphose Voltage Range:

90–280V (normal)

170–280V (UPS mode)

Charger Type: MPPT

MPPT range: 120–450VDC

Open circuit voltage: 500V

Maximum charging current per unit: 80A

PV inlet capacity: 6000W×3

Maximum Gross Charging Current (PV+AC): 80A

System Characteristics:

Smart LCD Display Controller

Outputs 380V and 220V (can not be used together at the same time)

Compatible with multi-voltage sockets

High energy conversion efficiency

An intelligent system for power distribution and operation of various devices

Suitable for homes, farms, workshops and commercial projects

Provides clean energy – reduces costs – ensures continuity
