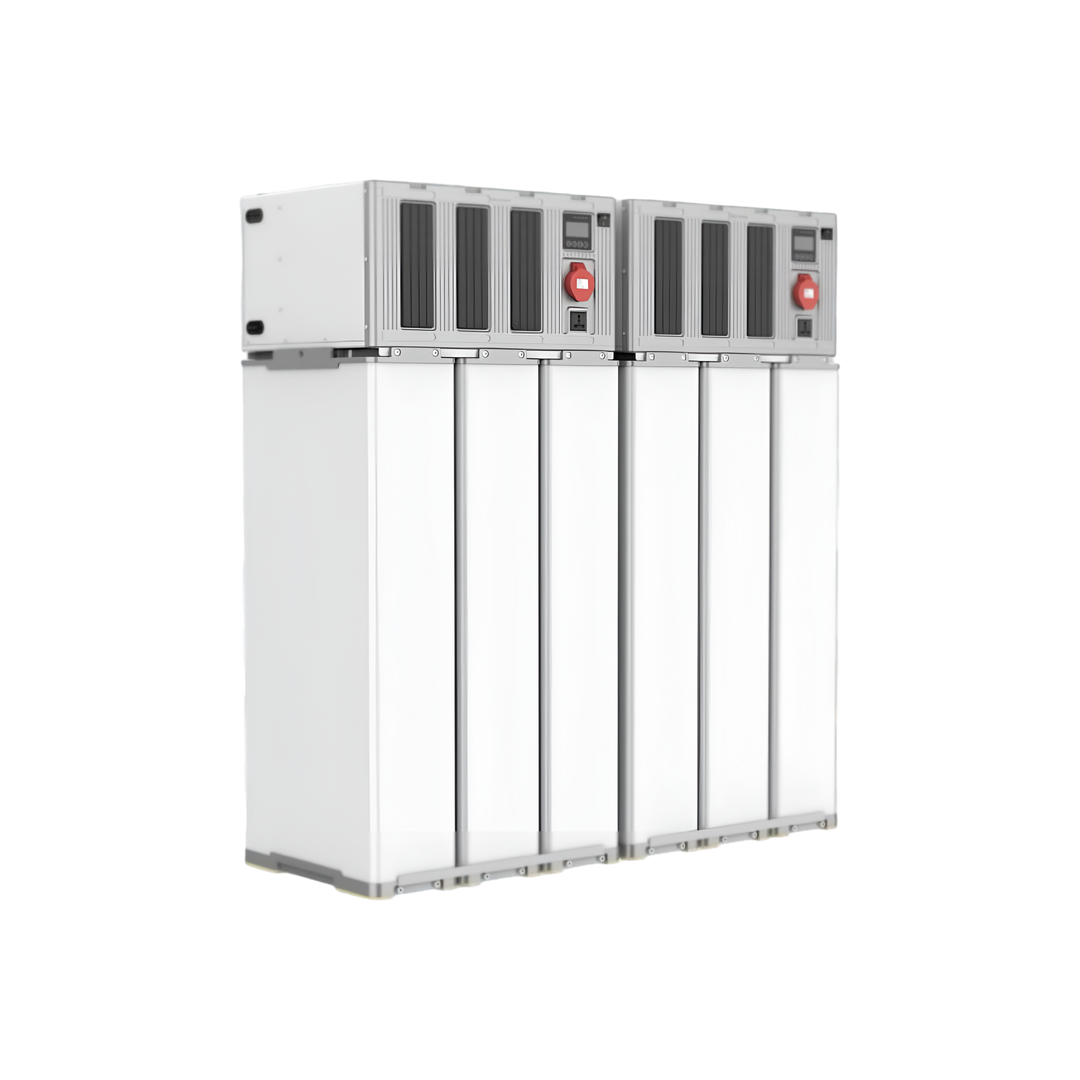

Solar System 36kW / 90kWh – 380V

An integrated solar energy system for the first time in Kuwait

From Spectrum Colours for Quality• Innovative solutions for energy storage and charging with international standards

System capacity: 90 kWh

Voltage: 380V

Maximum power: 36 kW

Number of panels 48 panels, 550 watts

Inverter Integration System

---

Battery:

• Nominal capacity: 1800 amps/h

• Nominal voltage: 48V

• Storage capacity: 90 kWh

Inverter Specifications:

• Maximum power: 36 kw

• Voltage: 360/380/397/415V

• Frequency: 50/60 Hz

• Power factor: 1

• Wave Type: Pure Sine

• System efficiency in battery mode: 93% at 48VDC

• Overload capacity: up to 150%

Solar Energy Input (PV Input):

• Input voltage: 360–415V

• MPPT range: 120–450VDC

• Open voltage of the circuit: 500V

• Charger Type: MPPT

• Maximum charging current per unit: 80A

• PV inlet capacity: 6000W×6

---

• Smart Display LCD Smart Display

• Multiple outputs 380V and 220V

• Compatible with different voltage sockets

• Integrated control in shipping, storage and reverse

• High efficiency and stability in operation

• Ideal for use in homes, factories, farms, and commercial systems

---

An integrated solution to save energy and reduce cost

Ready to meet your sustainable energy needs

Colours of the spectrum for quality - The future of energy in Kuwait
