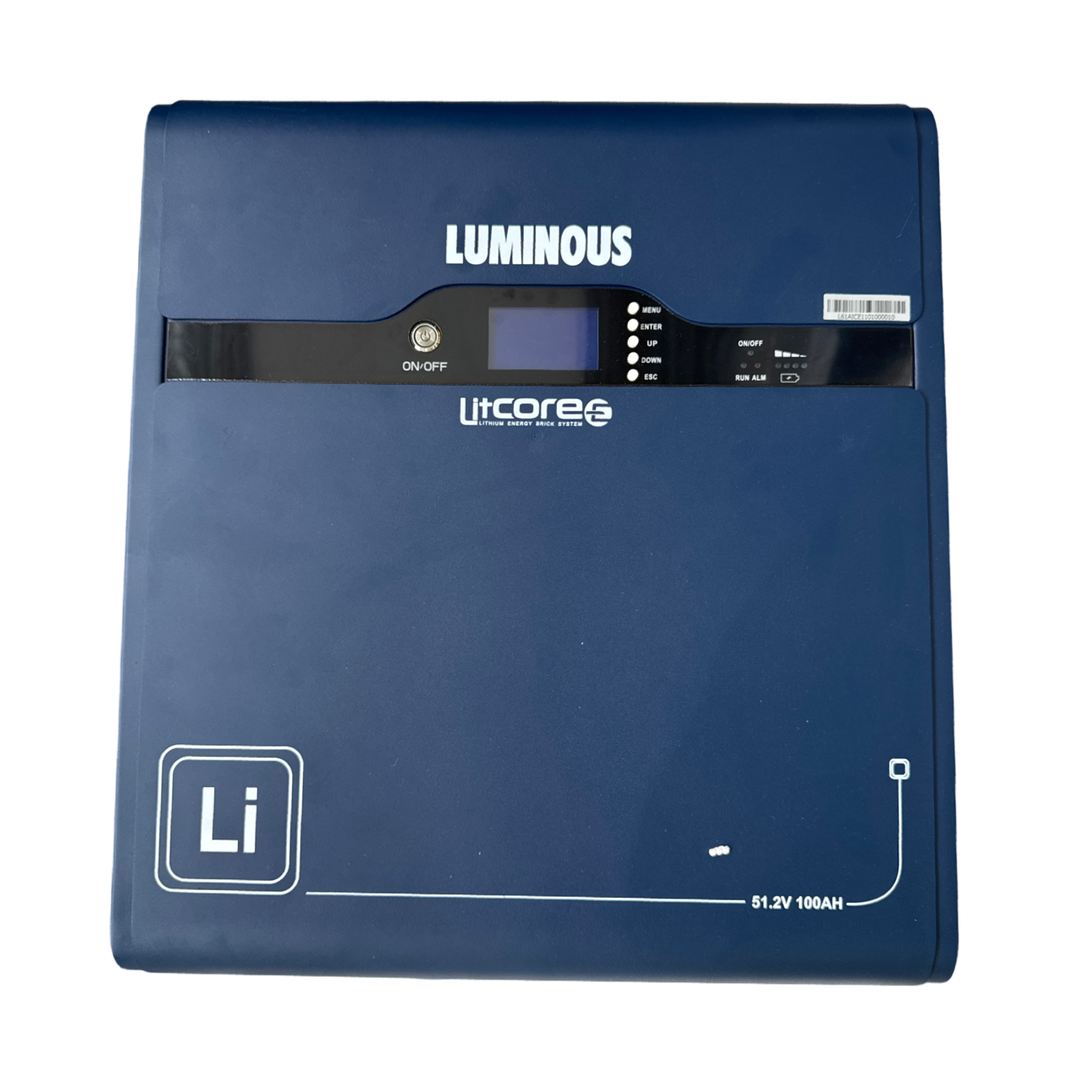

Lithium Battery 48V 100Ah 5.12kWh LUMINOUS LITCORE E

Lithium Battery 48V 100Ah 5.12kWh LUMINOUS LITCORE E with LCD Display

The LUMINOUS LITCORE E 100AH 51.2V lithium battery 48V 100Ah gives 5.12kWh of usable energy for home solar systems in houses, rest houses, farms and chalets in Kuwait. It supports 100A continuous charging, up to 12 batteries in parallel and 5000 or more cycles at 80% DOD.

Specifications

• Model: LITCORE E 100AH 51.2V
• Cell configuration: 3.2V 100Ah cells, 16S1P
• Nominal voltage: 51.2V (48V system)
• Rated capacity: 100Ah, usable energy 5.12kWh
• Operating voltage range: 41.6V–57.6V, charging voltage 57.6V
• Maximum continuous charge current: 100A
• Maximum continuous discharge current: 100A
• Recommended depth of discharge: 80%, efficiency 90% or more
• Cycle life: 5000 cycles or more at 0.5C/0.5C, 80% DOD, 80% EOL at 25°C
• Communication: USB, RS485, CAN
• Operating temperature: charge 0°C to 45°C, discharge -20°C to 55°C
• Weight: 53±2kg

Features

• Built-in LCD display
• Protection against over-voltage, under-voltage, over-current, over-temperature, under-temperature and short circuit
• Up to 12 batteries in parallel for larger systems
• M6 power terminals and RJ45 communication port

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
