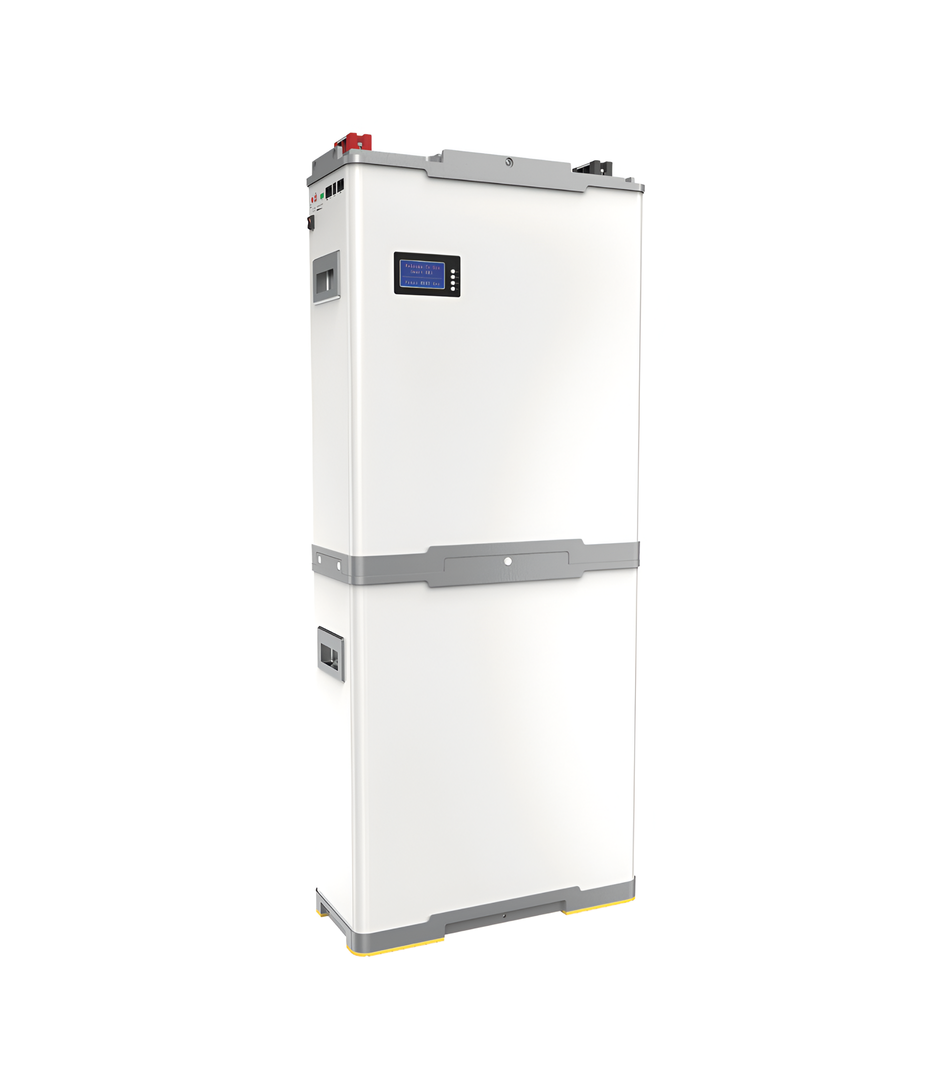

SMART-ALN-V-48-300 48V 300Ah 15.36kWh Smart Lithium Battery

 Smart Lithium Solar Battery – SMART-ALN-V-48-300

Capacity: 15360Wh (15.36kWh)

Cell Type: LiFePO₄ (Lithium Iron Phosphate)

 Basic Technical Specifications:

 Nominal Capacity: 300Ah

 Nominal Voltage: 48V (Actual: 51.2V)

 Total Energy: 15.36kWh

 Rated Current: 100A

 Battery Features:

Communication Interface: RS485 / CAN

Storage Temperature: -10℃ to 30℃

Operating Temperature Range: 0℃ to 50℃

Relative Humidity: 5% – 95% RH

Atmospheric Pressure: Below 5000m

Self-Discharge Rate (25℃): <3% per month

Depth of Discharge (DOD): >80%

C-rate Discharge: <0.8C

Cycle Life: >6000 cycles (at <0.5C discharge rate)

 Additional Details:

 Dimensions: 668 × 605 × 731 mm

 Parallel Connection: Up to 15 units

 Certifications: UN38.3 / CE / MSDS / DGM

 Ideal For:

Large-scale solar energy systems

Industrial or commercial applications

Critical load backup and emergency support at scale
