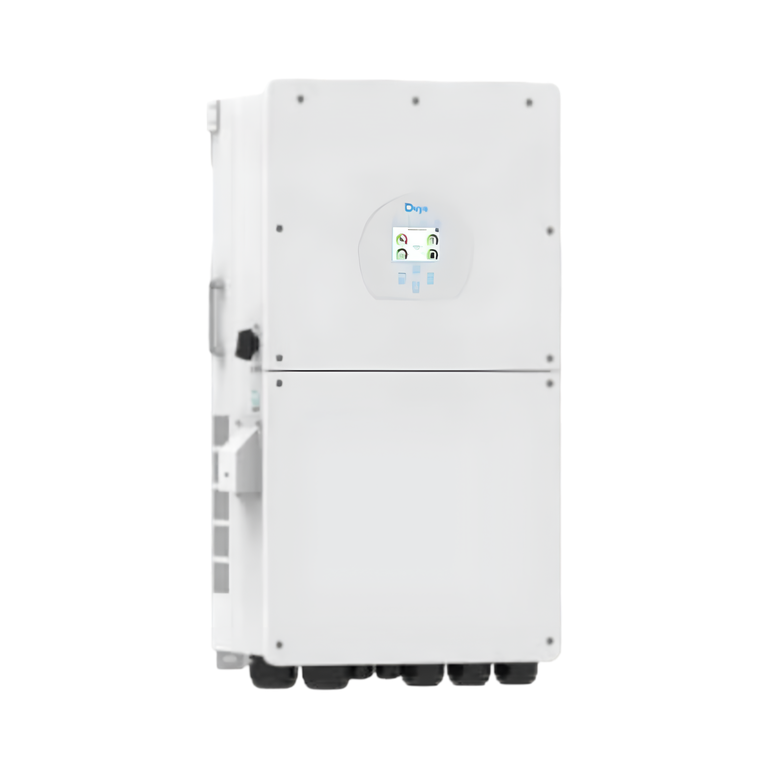

Hybrid Solar Inverter 16kW Single-Phase Deye SUN-16K-SG01LP1-EU

Hybrid Solar Inverter 16kW Single-Phase – Deye SUN-16K-SG01LP1-EU with 3 MPPT

Deye SUN-16K-SG01LP1-EU is a 16kW single-phase hybrid solar inverter for 40–60V lithium or lead-acid batteries, with 3 MPPT trackers, up to 20800W of panels and 290A battery charging. Suitable for homes, rest houses, farms and chalets in Kuwait.

Specifications

• Rated AC output and UPS power: 16000W (max 17600W)
• AC output: 220/230V single-phase, 50/60Hz
• Rated AC current: 72.7/69.6A (max 80/76.5A); AC passthrough up to 100A
• Off-grid peak power: 2× rated for 10s
• Battery: lead-acid or Li-ion, 40–60V
• Max charging/discharging current: 290A; 3-stage charging with equalization
• Solar panels: max DC input 20800W
• PV input voltage 125–500V; MPPT range 150–425V
• MPPT trackers: 3, with 2 strings and 26A each
• Efficiency: max 97.6%, European 96.5%, MPPT >99%
• IP65; operating temperature -40 to +60°C
• Weight: 52kg

Features

• Integrated PV arc fault detection, PV lightning protection, anti-islanding, reverse polarity protection, insulation detection and residual current monitoring.
• Type II surge protection on DC and AC.
• BMS communication via RS485 and CAN with self-adaption to lithium battery BMS.

Available from Alwan Al-Taif with delivery to all areas of Kuwait.
